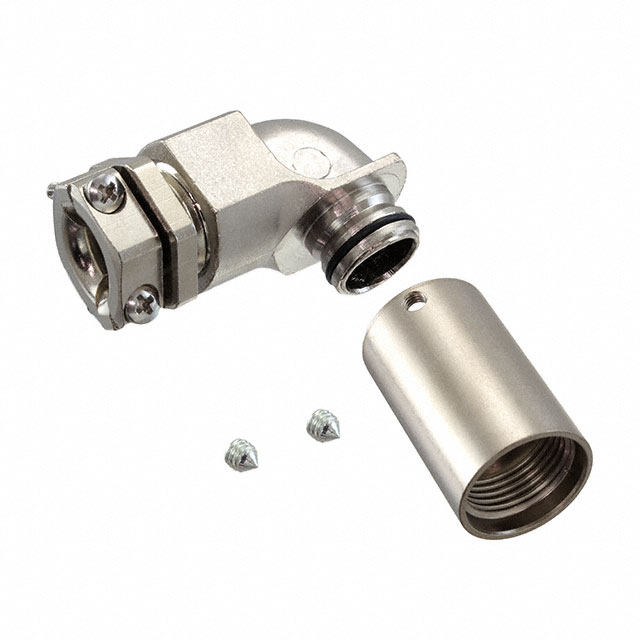

UT010LPGN

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ10 SIL PG9

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UT010LPGN

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ10 SIL PG9

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT010LPGN

Cable Exit	90 °
Cable Opening [Max] [diameter]	0.531 in
Cable Opening [Max] [diameter]	13.5 mm
Cable Opening [Min] [diameter]	0.197 in
Cable Opening [Min] [diameter]	5 mm
Color	Silver
Features	Clamp Screws, Strain Relief
For Use With/Related Products	Trim Trio® UTO and UTOW Connectors
Material	Brass
Material Flammability Rating	UL94 V-0
Shell Size - Insert	10
Shielding	Unshielded
Thread Size	PG9
Type	Backshell, Cable Clamp

UT010 Series

Part	Thread Size	Cable Exit	Shielding	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Type	Color	Shell Size - Insert	Material	Material Flammability Rating	For Use With/Related Products	Features	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Opening [custom]	Cable Opening [custom]	Accessory Type	Ingress Protection	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Plating	Cable Opening [diameter]	Cable Opening [diameter]	Includes
Souriau-Sunbank by Eaton UT010LPGN	PG9	90 °	Unshielded	0.197 in	5 mm	0.531 in	13.5 mm	Backshell Cable Clamp	Silver	10	Brass	UL94 V-0	Trim Trio® UTO and UTOW Connectors	Clamp Screws Strain Relief
Souriau-Sunbank by Eaton UT010AC	9/16-24 UNEF	180 °	Unshielded					Backshell Cable Clamp	Silver	10	Metal	UL94 V-0	Trim Trio® UTO and UTOW Connectors	Clamp Screws	16.26 mm	0.64 in	5 mm	0.197 in
Souriau-Sunbank by Eaton UT010DCG									Silver	10	Metal		Trim Trio® UTG Trim Trio® UTO Trim Trio® UTOW Trim Trio® UTP Receptacles	Dust Tight Metal Chain Waterproof					Cap (Cover) Dust
Souriau-Sunbank by Eaton UT010JC	PG9	180 °	Unshielded					Backshell Cable Clamp	Silver	10	Brass	UL94 V-0	Trim Trio® UTO and UTOW Connectors	Sealing Gland Strain Relief			3 mm 6 mm	0.118 in 0.236 in		IP68 IP69K
Souriau-Sunbank by Eaton UT010JCL	PG9	180 °	Unshielded					Backshell Cable Clamp	Silver	10	Brass	UL94 V-0	Trim Trio® UTO and UTOW Connectors	Sealing Gland Strain Relief						IP68 IP69K	5 mm	0.197 in	8 mm	0.315 in
Souriau-Sunbank by Eaton UT010JCS	PG9	180 °	Unshielded					Backshell Cable Clamp	Silver	10	Brass	UL94 V-0	Trim Trio® UTO and UTOW Connectors	Sealing Gland Strain Relief			3 mm 6 mm	0.118 in 0.236 in		IP68 IP69K
Souriau-Sunbank by Eaton UT010JCPGN	PG9	180 °	Unshielded					Backshell Cable Clamp	Silver	10	Aluminum Alloy	UL94 V-0	Trim Trio® UTO and UTOW Connectors	Clamp Screws Strain Relief						IP65 - Dust Tight Water Resistant					Nickel	11.2 mm	0.441 in	1 Backshell 1 Cable Clamp 1 Grommet 2 Screws 2 Washers
Souriau-Sunbank by Eaton UT010DC									Silver	10	Metal		Trim Trio® UTG Trim Trio® UTO Trim Trio® UTOW Trim Trio® UTP Receptacles	Dust Tight Waterproof					Cap (Cover) Dust

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 142.58
		10	$ 111.24
		25	$ 101.34
		50	$ 94.67
		100	$ 88.64

Description

General part information

UT010 Series

Silver Connector Backshell, Cable Clamp PG9 10

Documents

Technical documentation and resources
