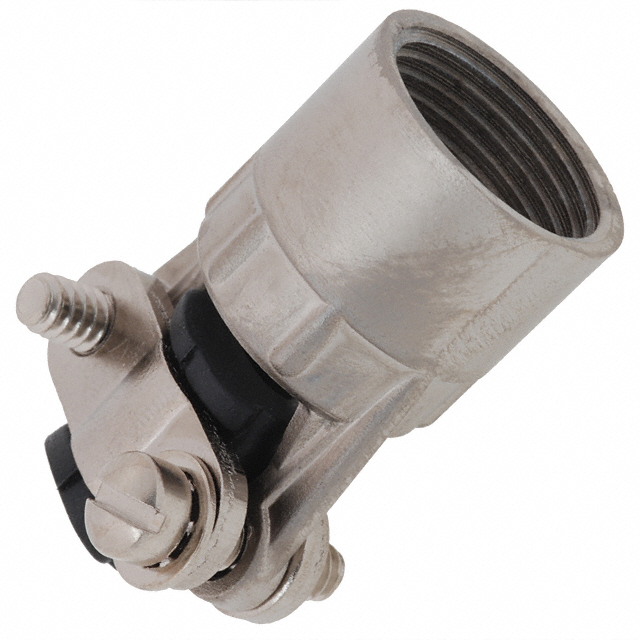

UT010AC

Active

Souriau-Sunbank by Eaton

CABLE CLAMP, W/STRAIN RELIEF, 10, METAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Drawing EN +1

UT010AC

Active

Souriau-Sunbank by Eaton

CABLE CLAMP, W/STRAIN RELIEF, 10, METAL

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT010AC

Cable Exit	180 °
Cable Opening [custom]	5 mm
Cable Opening [custom]	0.197 in
Color	Silver
Diameter - Outside [diameter]	16.26 mm
Diameter - Outside [diameter]	0.64 in
Features	Clamp Screws
For Use With/Related Products	Trim Trio® UTO and UTOW Connectors
Material	Metal
Material Flammability Rating	UL94 V-0
Shell Size - Insert	10
Shielding	Unshielded
Thread Size	9/16-24 UNEF
Type	Backshell, Cable Clamp

UT010 Series

Part	Thread Size	Cable Exit	Shielding	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Type	Color	Shell Size - Insert	Material	Material Flammability Rating	For Use With/Related Products	Features	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Opening [custom]	Cable Opening [custom]	Accessory Type	Ingress Protection	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Plating	Cable Opening [diameter]	Cable Opening [diameter]	Includes
Souriau-Sunbank by Eaton UT010LPGN	PG9	90 °	Unshielded	0.197 in	5 mm	0.531 in	13.5 mm	Backshell Cable Clamp	Silver	10	Brass	UL94 V-0	Trim Trio® UTO and UTOW Connectors	Clamp Screws Strain Relief
Souriau-Sunbank by Eaton UT010AC	9/16-24 UNEF	180 °	Unshielded					Backshell Cable Clamp	Silver	10	Metal	UL94 V-0	Trim Trio® UTO and UTOW Connectors	Clamp Screws	16.26 mm	0.64 in	5 mm	0.197 in
Souriau-Sunbank by Eaton UT010DCG									Silver	10	Metal		Trim Trio® UTG Trim Trio® UTO Trim Trio® UTOW Trim Trio® UTP Receptacles	Dust Tight Metal Chain Waterproof					Cap (Cover) Dust
Souriau-Sunbank by Eaton UT010JC	PG9	180 °	Unshielded					Backshell Cable Clamp	Silver	10	Brass	UL94 V-0	Trim Trio® UTO and UTOW Connectors	Sealing Gland Strain Relief			3 mm 6 mm	0.118 in 0.236 in		IP68 IP69K
Souriau-Sunbank by Eaton UT010JCL	PG9	180 °	Unshielded					Backshell Cable Clamp	Silver	10	Brass	UL94 V-0	Trim Trio® UTO and UTOW Connectors	Sealing Gland Strain Relief						IP68 IP69K	5 mm	0.197 in	8 mm	0.315 in
Souriau-Sunbank by Eaton UT010JCS	PG9	180 °	Unshielded					Backshell Cable Clamp	Silver	10	Brass	UL94 V-0	Trim Trio® UTO and UTOW Connectors	Sealing Gland Strain Relief			3 mm 6 mm	0.118 in 0.236 in		IP68 IP69K
Souriau-Sunbank by Eaton UT010JCPGN	PG9	180 °	Unshielded					Backshell Cable Clamp	Silver	10	Aluminum Alloy	UL94 V-0	Trim Trio® UTO and UTOW Connectors	Clamp Screws Strain Relief						IP65 - Dust Tight Water Resistant					Nickel	11.2 mm	0.441 in	1 Backshell 1 Cable Clamp 1 Grommet 2 Screws 2 Washers
Souriau-Sunbank by Eaton UT010DC									Silver	10	Metal		Trim Trio® UTG Trim Trio® UTO Trim Trio® UTOW Trim Trio® UTP Receptacles	Dust Tight Waterproof					Cap (Cover) Dust

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 19.15
		10	$ 16.60
		25	$ 15.73
		50	$ 15.50
		100	$ 13.68
		250	$ 12.77
		500	$ 12.49
Newark	Each	1	$ 29.84
		10	$ 27.79
		25	$ 26.11
		50	$ 23.32
		100	$ 21.34
		250	$ 20.24
		500	$ 18.48
		1000	$ 16.72

Description

General part information

UT010 Series

The Trim Trio UTO series Metal Circular Connector is a range of multi-way connectors available in 8 shell sizes and 8 insert arrangements all intermateable, interchangeable and inter-mountable with the TRIM TRIO UTG and UTP industrial connector families. UT0 is equipped with identical shells from military connectors complying to MIL-C-26482 specifications. Strong and rugged built to resist every environmental and mechanical requirement for indoor and outdoor applications. Amongst several characteristics, UT0 offers possibilities on shielding, high levels on sealing and salt spray. UT0 is also the perfect solution to connect cat5e Ethernet applications in combination with other signals, using the same TRIM TRIO contacts.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Drawing EN

Datasheet
