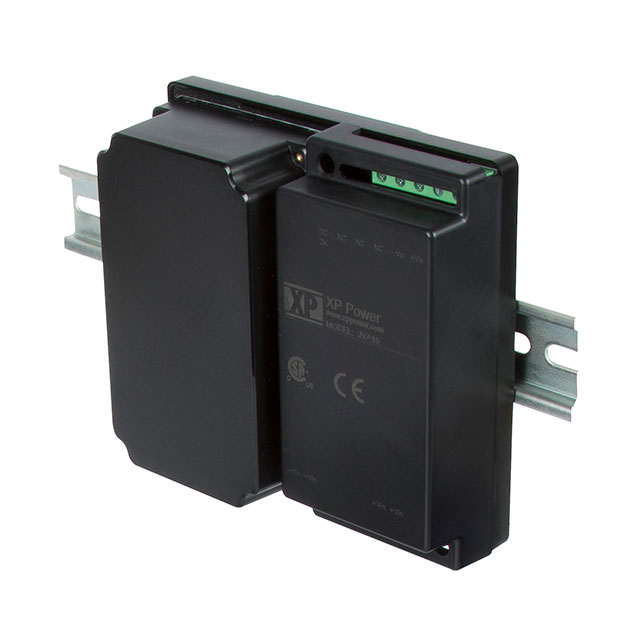

JVA151500S12-DF

Obsolete

XP POWER

DC/DC DIN RAIL SUPPLY 12V 15W

Search across all available documentation for this part.

Obsolete

XP POWER

DC/DC DIN RAIL SUPPLY 12V 15W

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Input Type	Efficiency	DC Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Voltage - Output 1	Current - Output (Max) [Max]	DC Voltage - Input (Min) [Min]	Voltage - Isolation	Approval Agency	Features	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Type	Package / Case
XP POWER JVA151500S12-DF	ITE (Commercial)	DC	72 %	1500 V	5.43 "	5.78 "	5.43 in	137.9 mm	146.8 mm	137.9 mm	15 W	12 V	1.25 A	200 V	4000 V	UL	Remote On/Off	1
XP POWER JVA151500S12-D	ITE (Commercial)	DC	72 %	1500 V	1.92 "	5.07 in	4.01 in	48.8 mm	128.8 mm	101.9 mm	15 W	12 V	1.25 A	200 V	4000 V	UL	Remote On/Off	1
XP POWER JVA151500S15	ITE (Commercial)		72 %		1.57 "	4.92 in	2.95 in	40 mm	125 mm	75 mm	15 W	15 V	1 A		4000 V		Remote On/Off	1	1500 V	200 V	Through Hole	Isolated Module	5-DIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DC/DC DIN RAIL SUPPLY 12V 15W
