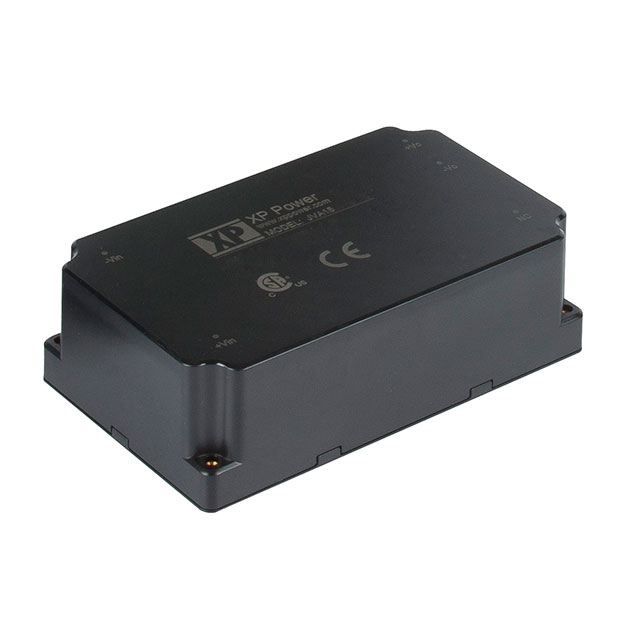

JVA151500S15

Obsolete

XP POWER

DC DC CONVERTER 15V 15W

Search across all available documentation for this part.

Obsolete

XP POWER

DC DC CONVERTER 15V 15W

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Input Type	Efficiency	DC Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Voltage - Output 1	Current - Output (Max) [Max]	DC Voltage - Input (Min) [Min]	Voltage - Isolation	Approval Agency	Features	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Type	Package / Case
XP POWER JVA151500S12-DF	ITE (Commercial)	DC	72 %	1500 V	5.43 "	5.78 "	5.43 in	137.9 mm	146.8 mm	137.9 mm	15 W	12 V	1.25 A	200 V	4000 V	UL	Remote On/Off	1
XP POWER JVA151500S12-D	ITE (Commercial)	DC	72 %	1500 V	1.92 "	5.07 in	4.01 in	48.8 mm	128.8 mm	101.9 mm	15 W	12 V	1.25 A	200 V	4000 V	UL	Remote On/Off	1
XP POWER JVA151500S15	ITE (Commercial)		72 %		1.57 "	4.92 in	2.95 in	40 mm	125 mm	75 mm	15 W	15 V	1 A		4000 V		Remote On/Off	1	1500 V	200 V	Through Hole	Isolated Module	5-DIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 15V 1A 200V - 1500V Input
