19302161542
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, M32 SIDE ENTRY, 2 PEGS, LOW PROFILE, HOOD, SIDE ENTRY, ALUMINUM BODY, 1 LEVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19302161542 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 16 B |
| Size / Dimension [x] | 93.5 mm |
| Size / Dimension [x] | 3.681 " |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 62.5 mm |
| Size / Dimension [z] | 2.461 in |
| Style | Side Entry |
| Thread Size | M32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
19302161 Series

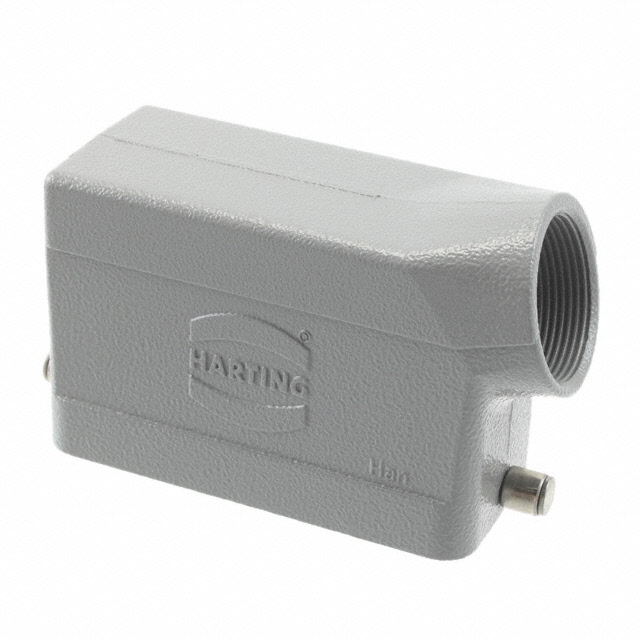

The 19302161542 from Harting is a Han® B HMC (High Mating Cycles) side entry, 16B size, low construction standard hood. Single lever locking system metal hood is suitable for industrial applications.
