19302161441

Active

HARTING Technology Group

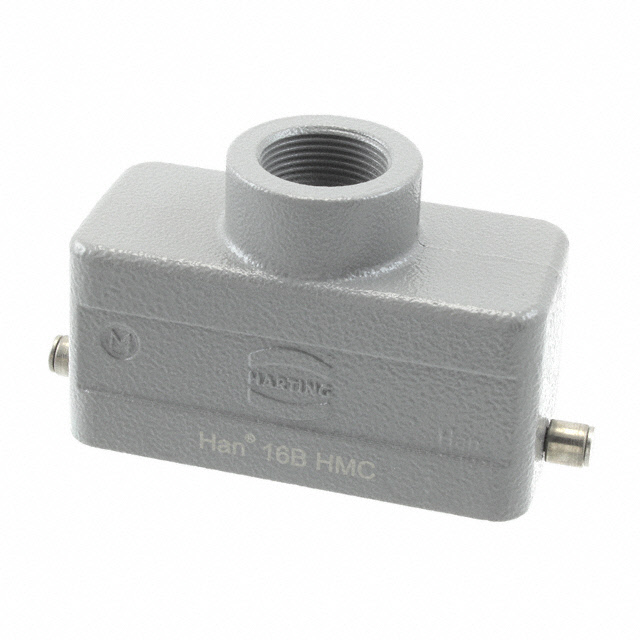

ENCLOSURE FOR CONNECTORS: HDC; SIZE 16B; FOR CABLE; HAN® HMC

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 16B; FOR CABLE; HAN® HMC

Technical Specifications

Parameters and characteristics for this part

Specification	19302161441

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	93.5 mm
Size / Dimension [x]	3.681 "
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	1.772 in
Size / Dimension [z]	45 mm
Style	Top Entry
Thread Size	M25

Part	Connector Type	Style	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Size	Housing Material	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Housing Color	Ingress Protection	Features	Housing Finish	Size / Dimension
HARTING Technology Group 19302161752	Hood - Coupling	Top Entry	Locking Clip (1) on Hood	125 °C	-40 °C	M32	16 B	Aluminum Die Cast	43 mm	1.866 "	1.693 in	3.681 "	93.5 mm	47.4 mm	Gray	IP65 - Dust Tight Water Resistant	Cable to Cable	Powder Coated
HARTING Technology Group 19302161441	Hood	Top Entry	Locking Clip (1) on Base Bottom	125 °C	-40 °C	M25	16 B	Aluminum Die Cast	43 mm	1.772 in	1.693 in	3.681 "	93.5 mm	45 mm	Gray	IP65 - Dust Tight Water Resistant		Powder Coated
HARTING Technology Group 19302161291	Base - Box Mount	Side Entry Dual	Locking Clip (1) on Base Bottom	125 °C	-40 °C	M25	16 B	Aluminum Die Cast		2.197 "	2.244 "	4.606 "			Gray	IP65 - Dust Tight Water Resistant	Feed Through	Powder Coated	55.8 mm 57 mm 117 mm
HARTING Technology Group 19302161542	Hood	Side Entry	Locking Clip (1) on Base Bottom	125 °C	-40 °C	M32	16 B	Aluminum Die Cast	43 mm	2.461 in	1.693 in	3.681 "	93.5 mm	62.5 mm	Gray	IP65 - Dust Tight Water Resistant		Powder Coated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M25 16B IP65 - Dust Tight, Water Resistant
