MMI-M0FSG05S

Active

Adam Tech

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Search across all available documentation for this part.

Active

Adam Tech

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Connector Type	Shell Material	Color	Voltage Rating	Ingress Protection	Orientation	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Primary Material	Contact Material	Shell Finish	Current Rating (Amps)	Fastening Type	Shielding	Mounting Feature
Adam Tech MMI-M0FSG04S	4	Receptacle Female Sockets	Brass	Silver	200 V	IP50	G	Gold	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Metal	Brass	Chrome	5 A	Push-Pull	Unshielded	Bulkhead - Rear Side Nut
Adam Tech MMI-M0FSG03S		Receptacle Female Sockets	Brass	Silver	250 VDC	IP50	G	Gold	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Metal	Brass	Chrome	7 A	Push-Pull	Unshielded	Bulkhead - Rear Side Nut
Adam Tech MMI-M0FSG02S	2	Receptacle Female Sockets	Brass	Silver	250 VDC	IP50	G	Gold	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Metal	Brass	Chrome	8 A	Push-Pull	Unshielded	Bulkhead - Rear Side Nut
Adam Tech MMI-M0FSG05S		Receptacle Female Sockets	Brass	Silver	200 V	IP50	G	Gold	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Metal	Brass	Chrome	5 A	Push-Pull	Unshielded	Bulkhead - Rear Side Nut
Adam Tech MMI-M0FSG06S	6	Receptacle Female Sockets	Brass	Silver	200 V	IP50	G	Gold	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Metal	Brass	Chrome	2.5 A	Push-Pull	Unshielded	Bulkhead - Rear Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

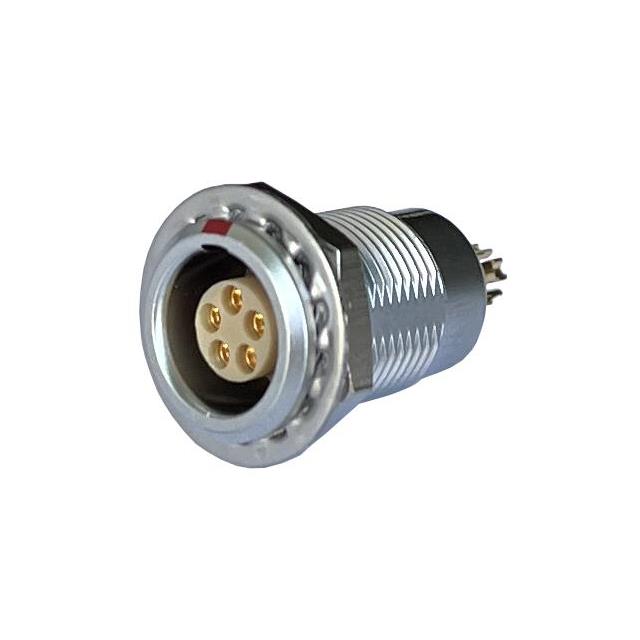

5 Position Circular Connector Receptacle, Female Sockets Solder Cup
