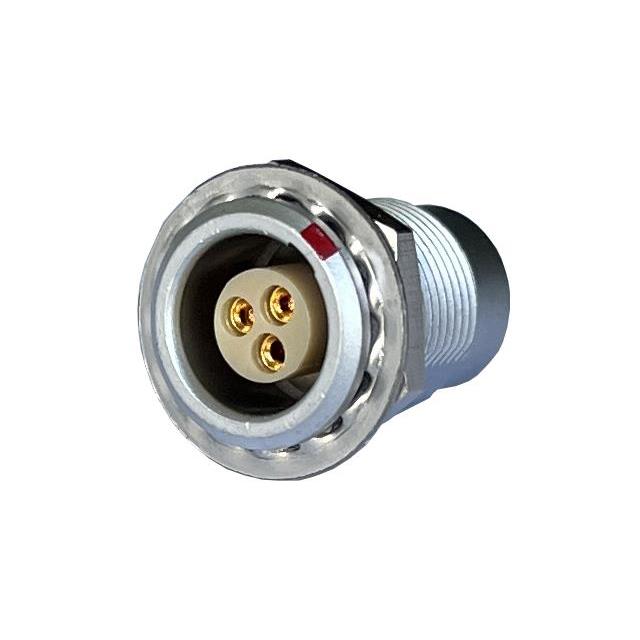

MMI-M0FSG03S

Active

Adam Tech

CONN RCPT FMALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT FMALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Connector Type	Shell Material	Color	Voltage Rating	Ingress Protection	Orientation	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Primary Material	Contact Material	Shell Finish	Current Rating (Amps)	Fastening Type	Shielding	Mounting Feature
Adam Tech MMI-M0FSG04S	4	Receptacle Female Sockets	Brass	Silver	200 V	IP50	G	Gold	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Metal	Brass	Chrome	5 A	Push-Pull	Unshielded	Bulkhead - Rear Side Nut
Adam Tech MMI-M0FSG03S		Receptacle Female Sockets	Brass	Silver	250 VDC	IP50	G	Gold	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Metal	Brass	Chrome	7 A	Push-Pull	Unshielded	Bulkhead - Rear Side Nut
Adam Tech MMI-M0FSG02S	2	Receptacle Female Sockets	Brass	Silver	250 VDC	IP50	G	Gold	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Metal	Brass	Chrome	8 A	Push-Pull	Unshielded	Bulkhead - Rear Side Nut
Adam Tech MMI-M0FSG05S		Receptacle Female Sockets	Brass	Silver	200 V	IP50	G	Gold	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Metal	Brass	Chrome	5 A	Push-Pull	Unshielded	Bulkhead - Rear Side Nut
Adam Tech MMI-M0FSG06S	6	Receptacle Female Sockets	Brass	Silver	200 V	IP50	G	Gold	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Metal	Brass	Chrome	2.5 A	Push-Pull	Unshielded	Bulkhead - Rear Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
