C2RXS-1406M

Active

CW Industries

DIP CABLE - CDR14S/AE14M/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide

C2RXS-1406M

Active

CW Industries

DIP CABLE - CDR14S/AE14M/X

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C2RXS-1406M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	DIP to Cable
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Features	Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	14
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded
Usage	Socket (0.3"), Board In

C2RXS-1 Series

Part	Length [x]	Length [x]	Connector Type	Pitch - Cable	Pitch - Cable	Shielding	Usage	Features	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Number of Rows	Number of Positions	Contact Finish	Color	Length	Length	Length	Number of Positions
CW Industries C2RXS-1618G	457.2 mm	1.5 ft	DIP to Cable	0.05 "	1.27 mm	Unshielded	Board In Socket (0.3")	Strain Relief	IDC	2.54 µm	100 µin	0.1 in	2.54 mm	2	16	Tin
CW Industries C2RXS-1618M	457.2 mm	1.5 ft	DIP to Cable	0.05 "	1.27 mm	Unshielded	Board In Socket (0.3")	Strain Relief	IDC	2.54 µm	100 µin	0.1 in	2.54 mm	2	16	Tin	Multiple Ribbon
CW Industries C2RXS-1606G			DIP to Cable	0.05 "	1.27 mm	Unshielded	Board In Socket (0.3")	Strain Relief	IDC	2.54 µm	100 µin	0.1 in	2.54 mm	2	16	Tin		152.4 mm	6 "	0.5 '
CW Industries C2RXS-1636G	914.4 mm	3 ft	DIP to Cable	0.05 "	1.27 mm	Unshielded	Board In Socket (0.3")	Strain Relief	IDC	2.54 µm	100 µin	0.1 in	2.54 mm	2	16	Tin
CW Industries C2RXS-1636M	914.4 mm	3 ft	DIP to Cable	0.05 "	1.27 mm	Unshielded	Board In Socket (0.3")	Strain Relief	IDC	2.54 µm	100 µin	0.1 in	2.54 mm	2	16	Tin	Multiple Ribbon
CW Industries C2RXS-1406M			DIP to Cable	0.05 "	1.27 mm	Unshielded	Board In Socket (0.3")	Strain Relief	IDC	2.54 µm	100 µin	0.1 in	2.54 mm	2		Tin	Multiple Ribbon	152.4 mm	6 "	0.5 '	14
CW Industries C2RXS-1418M	457.2 mm	1.5 ft	DIP to Cable	0.05 "	1.27 mm	Unshielded	Board In Socket (0.3")	Strain Relief	IDC	2.54 µm	100 µin	0.1 in	2.54 mm	2		Tin	Multiple Ribbon				14
CW Industries C2RXS-1436M	914.4 mm	3 ft	DIP to Cable	0.05 "	1.27 mm	Unshielded	Board In Socket (0.3")	Strain Relief	IDC	2.54 µm	100 µin	0.1 in	2.54 mm	2		Tin	Multiple Ribbon				14
CW Industries C2RXS-1606M			DIP to Cable	0.05 "	1.27 mm	Unshielded	Board In Socket (0.3")	Strain Relief	IDC	2.54 µm	100 µin	0.1 in	2.54 mm	2	16	Tin	Multiple Ribbon	152.4 mm	6 "	0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.71
		10	$ 4.37
		25	$ 3.94
		50	$ 3.65
		100	$ 3.39
		250	$ 3.07
		500	$ 2.86
		1000	$ 2.67
		2500	$ 2.45

Description

General part information

C2RXS-1 Series

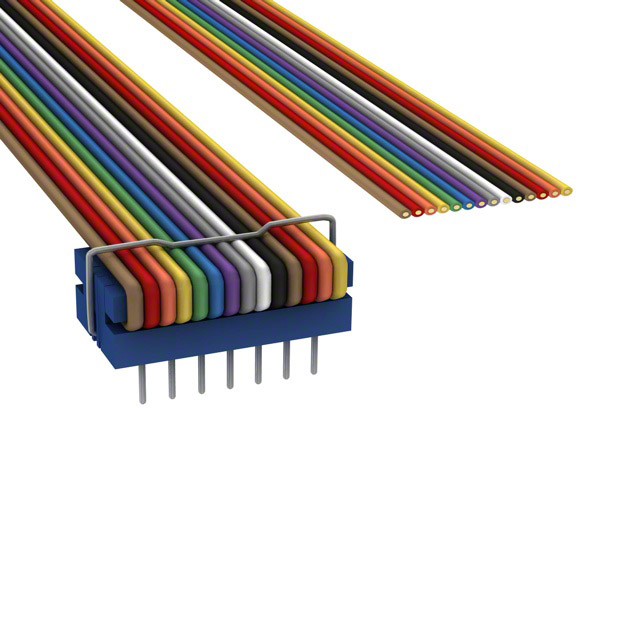

14 Position Cable Assembly Rectangular DIP to Cable 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet
