C2RXS-1618M

Active

CW Industries

DIP CABLE - CDR16S/AE16M/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide

C2RXS-1618M

Active

CW Industries

DIP CABLE - CDR16S/AE16M/X

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C2RXS-1618M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	DIP to Cable
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Features	Strain Relief
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	16
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded
Usage	Socket (0.3"), Board In

C2RXS-1 Series

Part	Length [x]	Length [x]	Connector Type	Pitch - Cable	Pitch - Cable	Shielding	Usage	Features	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Number of Rows	Number of Positions	Contact Finish	Color	Length	Length	Length	Number of Positions
CW Industries C2RXS-1618G	457.2 mm	1.5 ft	DIP to Cable	0.05 "	1.27 mm	Unshielded	Board In Socket (0.3")	Strain Relief	IDC	2.54 µm	100 µin	0.1 in	2.54 mm	2	16	Tin
CW Industries C2RXS-1618M	457.2 mm	1.5 ft	DIP to Cable	0.05 "	1.27 mm	Unshielded	Board In Socket (0.3")	Strain Relief	IDC	2.54 µm	100 µin	0.1 in	2.54 mm	2	16	Tin	Multiple Ribbon
CW Industries C2RXS-1606G			DIP to Cable	0.05 "	1.27 mm	Unshielded	Board In Socket (0.3")	Strain Relief	IDC	2.54 µm	100 µin	0.1 in	2.54 mm	2	16	Tin		152.4 mm	6 "	0.5 '
CW Industries C2RXS-1636G	914.4 mm	3 ft	DIP to Cable	0.05 "	1.27 mm	Unshielded	Board In Socket (0.3")	Strain Relief	IDC	2.54 µm	100 µin	0.1 in	2.54 mm	2	16	Tin
CW Industries C2RXS-1636M	914.4 mm	3 ft	DIP to Cable	0.05 "	1.27 mm	Unshielded	Board In Socket (0.3")	Strain Relief	IDC	2.54 µm	100 µin	0.1 in	2.54 mm	2	16	Tin	Multiple Ribbon
CW Industries C2RXS-1406M			DIP to Cable	0.05 "	1.27 mm	Unshielded	Board In Socket (0.3")	Strain Relief	IDC	2.54 µm	100 µin	0.1 in	2.54 mm	2		Tin	Multiple Ribbon	152.4 mm	6 "	0.5 '	14
CW Industries C2RXS-1418M	457.2 mm	1.5 ft	DIP to Cable	0.05 "	1.27 mm	Unshielded	Board In Socket (0.3")	Strain Relief	IDC	2.54 µm	100 µin	0.1 in	2.54 mm	2		Tin	Multiple Ribbon				14
CW Industries C2RXS-1436M	914.4 mm	3 ft	DIP to Cable	0.05 "	1.27 mm	Unshielded	Board In Socket (0.3")	Strain Relief	IDC	2.54 µm	100 µin	0.1 in	2.54 mm	2		Tin	Multiple Ribbon				14
CW Industries C2RXS-1606M			DIP to Cable	0.05 "	1.27 mm	Unshielded	Board In Socket (0.3")	Strain Relief	IDC	2.54 µm	100 µin	0.1 in	2.54 mm	2	16	Tin	Multiple Ribbon	152.4 mm	6 "	0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.21
		10	$ 5.53
		25	$ 4.99
		50	$ 4.62
		100	$ 4.29
		250	$ 3.90
		500	$ 3.63
		1000	$ 3.40
		2500	$ 3.11

Description

General part information

C2RXS-1 Series

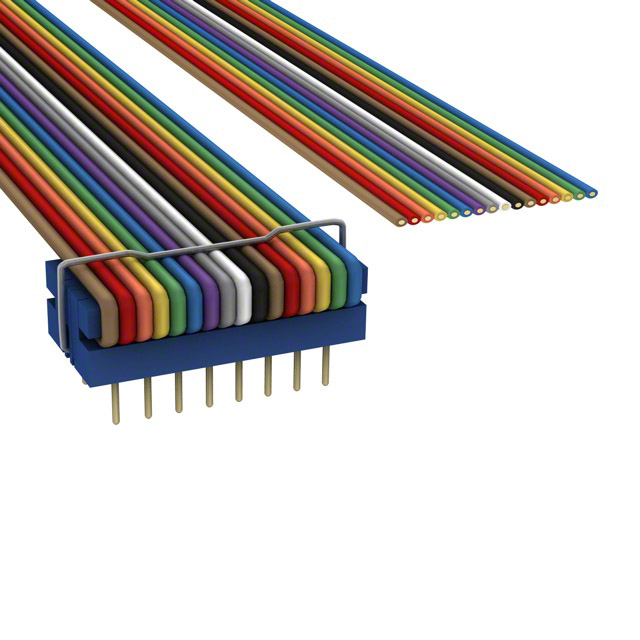

16 Position Cable Assembly Rectangular DIP to Cable 1.50' (457.20mm)
