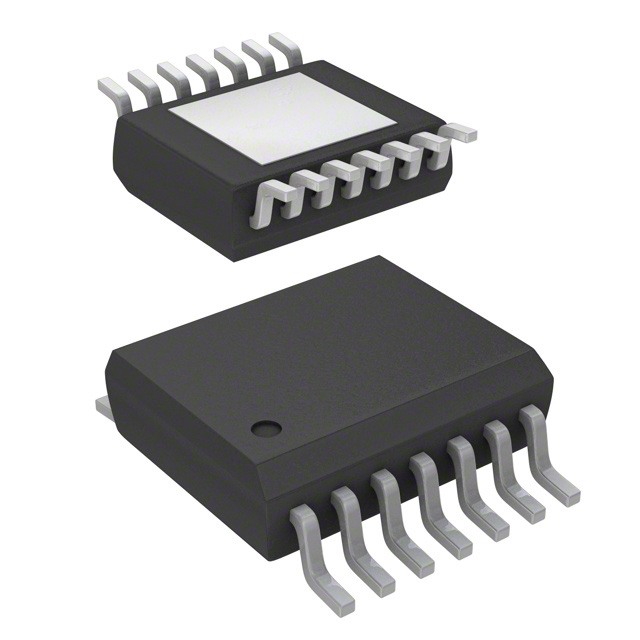

TLS820F1ELV50XUMA1

Infineon Technologies

THE TLS820F1EL V50 IS A HIGH PERFORMANCE VERY LOW DROPOUT LINEAR VOLTAGE REGULATOR FOR 5 V SUPPLY IN A SMALL AND THERMALLY ENHANCED PG-SSOP-14 PACKAGE.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet EOL Notices EN

TLS820F1ELV50XUMA1

Infineon Technologies

THE TLS820F1EL V50 IS A HIGH PERFORMANCE VERY LOW DROPOUT LINEAR VOLTAGE REGULATOR FOR 5 V SUPPLY IN A SMALL AND THERMALLY ENHANCED PG-SSOP-14 PACKAGE.

Deep-Dive with AI

DocumentsDatasheet EOL Notices EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLS820F1ELV50XUMA1

Control Features	Reset, Delay, Enable, Watchdog
Current - Output	200 mA
Current - Quiescent (Iq)	5 µA
Current - Supply (Max) [Max]	80 µA
Grade	Automotive
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	14-LSSOP, Exposed Pad
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Protection Features	Over Temperature, Over Current, Short Circuit
PSRR	59 dB
Qualification	AEC-Q100
Supplier Device Package	PG-SSOP-14-5
Voltage - Output (Min/Fixed)	5 V
Voltage Dropout (Max) [Max]	0.34 V

TLS820 Series

Part	Current - Output	Number of Regulators	Current - Quiescent (Iq)	Qualification	Protection Features	Voltage - Output (Min/Fixed)	Output Type	Package / Case [x]	Package / Case	Package / Case [y]	PSRR	Grade	Control Features	Supplier Device Package	Voltage Dropout (Max) [Min]	Voltage Dropout (Max) [Max]	Current - Supply (Max) [Max]	Mounting Type	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Board Type	Supplied Contents	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Type	Utilized IC / Part	Channels per IC
Infineon Technologies TLS820D2ELVSEXUMA2	200 mA	1	30 µA	AEC-Q100	Over Current Over Temperature	3.3 V 5 V	1.81 mOhm	0.154 in	14-LSSOP Exposed Pad	3.9 mm	60 dB 63 db	Automotive	Enable Reset	PG-SSOP-14-5	0.4 V	0.48 V	42 µA	Surface Mount	Positive	150 °C	-40 °C
Infineon Technologies TLS820F1ELV50XUMA1	200 mA	1	5 µA	AEC-Q100	Over Current Over Temperature Short Circuit	5 V	1.81 mOhm	0.154 in	14-LSSOP Exposed Pad	3.9 mm	59 dB	Automotive	Delay Enable Reset Watchdog	PG-SSOP-14-5		0.34 V	80 µA	Surface Mount	Positive	150 °C	-40 °C
Infineon Technologies TLS820B2ELVSEBOARDTOBO1	200 mA																					Fully Populated	Board(s)	5 V	40 V	3 V	Positive Fixed	TLS820B2	1 - Single

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.08
	Digi-Reel®	1	$ 2.08
	Tape & Reel (TR)	2500	$ 1.07
		5000	$ 1.04
		7500	$ 1.03
Newark	Each (Supplied on Cut Tape)	1	$ 1.45
		10	$ 1.22
		25	$ 1.13
		50	$ 1.06
		100	$ 1.00

Description

General part information

TLS820 Series

With an input voltage range of 3 V to 40 V and very low quiescent of only 40 μA, these regulators are perfectly suitable for automotive or any other supply systems connected to the battery permanently. The TLS820F1ELV50 provides an output voltage accuracy of 2 % and a maximum output current up to 200 mA. The new loop concept combines fast regulation and very good stability while requiring only one small ceramic capacitor of 1 μF at the output. At currents below 100 mA the device will have a very low typical dropout voltage of only 70 mV. The operating range starts already at input voltages of only 3 V (extended operating range). This makes the TLS820F1ELV50 also suitable to supply automotive systems that need to operate during cranking condition. In addition, a Watchdog circuit with flexible timings is integrated to monitor the microcontroller‘s operation. Internal protection features like output current limitation and overtemperature shutdown are implemented to protect the device against immediate damage due to failures like output short circuit to GND, over-current and over-temperatures. TLS820F3ELV50is the available version of this product.
