TLS820B2ELVSEBOARDTOBO1

Active

Infineon Technologies

DEMO BOARD, LOW DROPOUT LINEAR REGULATOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

TLS820B2ELVSEBOARDTOBO1

Active

Infineon Technologies

DEMO BOARD, LOW DROPOUT LINEAR REGULATOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLS820B2ELVSEBOARDTOBO1

Board Type	Fully Populated
Channels per IC	1 - Single
Current - Output	200 mA
Regulator Type	Positive Fixed
Supplied Contents	Board(s)
Utilized IC / Part	TLS820B2
Voltage - Input [Max]	40 V
Voltage - Input [Min]	3 V
Voltage - Output	5 V

TLS820 Series

Part	Current - Output	Number of Regulators	Current - Quiescent (Iq)	Qualification	Protection Features	Voltage - Output (Min/Fixed)	Output Type	Package / Case [x]	Package / Case	Package / Case [y]	PSRR	Grade	Control Features	Supplier Device Package	Voltage Dropout (Max) [Min]	Voltage Dropout (Max) [Max]	Current - Supply (Max) [Max]	Mounting Type	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Board Type	Supplied Contents	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Type	Utilized IC / Part	Channels per IC
Infineon Technologies TLS820D2ELVSEXUMA2	200 mA	1	30 µA	AEC-Q100	Over Current Over Temperature	3.3 V 5 V	1.81 mOhm	0.154 in	14-LSSOP Exposed Pad	3.9 mm	60 dB 63 db	Automotive	Enable Reset	PG-SSOP-14-5	0.4 V	0.48 V	42 µA	Surface Mount	Positive	150 °C	-40 °C
Infineon Technologies TLS820F1ELV50XUMA1	200 mA	1	5 µA	AEC-Q100	Over Current Over Temperature Short Circuit	5 V	1.81 mOhm	0.154 in	14-LSSOP Exposed Pad	3.9 mm	59 dB	Automotive	Delay Enable Reset Watchdog	PG-SSOP-14-5		0.34 V	80 µA	Surface Mount	Positive	150 °C	-40 °C
Infineon Technologies TLS820B2ELVSEBOARDTOBO1	200 mA																					Fully Populated	Board(s)	5 V	40 V	3 V	Positive Fixed	TLS820B2	1 - Single

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 57.50
Newark	Each	1	$ 55.93
		1	$ 55.93

Description

General part information

TLS820 Series

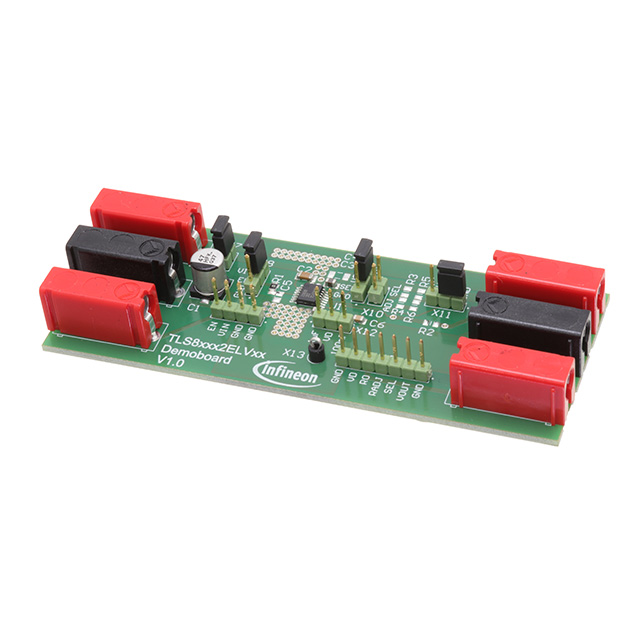

TheTLS820B2ELVSEdemoboard enables evaluation of Infineon’s latest high performance automotive LDOs with ultra-low quiescent current. The TLS820B2ELVSE has been designed for all ECUs connected to the battery within the automotive application specifically body control modules and HVAC that only need an enable feature. The ultra-low quiescent current of typically 20µA helps Tier1s meet OEM imposed current consumption restrictions on the ECU level. The demoboard allows for an easy plug and plan solution to evaluate the TLS820B2ELVSE with all necessary external components already mounted on the board. The TLS820B2ELVSE has a selectable output voltage where, by connecting the ‘SEL’ pin to either device input or GND, configures the device as a 5V or a 3.3V output regulator. The demoboard can also be used to evaluate the function of the SEL pin.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
