109P0812H702

Obsolete

Sanyo Denki America Inc.

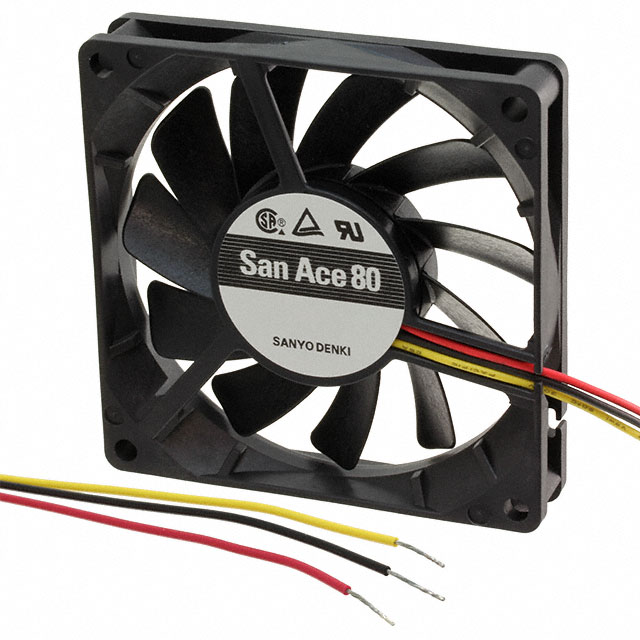

FAN AXIAL 80X15MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions for Fan Motors Rotor Balancing

109P0812H702

Obsolete

Sanyo Denki America Inc.

FAN AXIAL 80X15MM 12VDC WIRE

Deep-Dive with AI

DocumentsHandling Instructions for Fan Motors Rotor Balancing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109P0812H702

Air Flow	32.1 CFM
Air Flow	0.899 mł/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.2 A
Fan Type	Tubeaxial
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	31 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	2.4 W
RPM	3100 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	29.4 Pa
Static Pressure	0.118 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	0.15 lbs
Weight	68.04 g
Width [x]	15 mm

109P0812 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Size / Dimension [y]	Size / Dimension [x]	Termination	Fan Type	Features	Noise	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	RPM	Power (Watts)	Width [y]	Material - Frame	Air Flow	Air Flow	Approval Agency	Weight	Weight	Voltage - Rated	Current Rating (Amps)	Width [x]	Lifetime @ Temp.
Sanyo Denki America Inc. 109P0812M6D01	-20 °C	70 °C	-20 C	70 °C	0.075 in H2O	18.6 Pa	80 mm	80 mm	3 Wire Leads	Tubeaxial	Locked Rotor Sensor	25 dB(A)	Ball	10.2 VDC	13.8 VDC	Plastic	2300 RPM	1.56 W	20 mm	Plastic	0.664 m³/min	23.7 CFM	CSA TUV UL	0.222 lb	100.7 g	12 VDC
Sanyo Denki America Inc. 109P0812M601	-20 °C	70 °C	-20 C	70 °C	0.075 in H2O	18.6 Pa	80 mm	80 mm	3 Wire Leads	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	25 dB(A)	Ball	10.2 VDC	13.8 VDC	Plastic	2300 RPM	1.56 W	20 mm	Plastic	0.664 m³/min	23.7 CFM	CSA TUV UL	0.222 lb	100.7 g	12 VDC
Sanyo Denki America Inc. 109P0812H602	-20 °C	70 °C	-20 C	70 °C	0.118 in H2O	29.4 Pa	80 mm	80 mm	2 Wire Leads	Tubeaxial		31 dB(A)	Ball	10.2 VDC	13.8 VDC	Plastic	2900 RPM	2.52 W	20 mm	Plastic	0.832 mł/min	29.7 CFM	CSA TUV UL	0.222 lb	100.7 g	12 VDC	0.21 A
Sanyo Denki America Inc. 109P0812M602	-20 °C	70 °C	-20 C	70 °C	0.075 in H2O	18.6 Pa	80 mm	80 mm	2 Wire Leads	Tubeaxial		25 dB(A)	Ball	10.2 VDC	13.8 VDC	Plastic	2300 RPM	1.56 W	20 mm	Plastic	0.664 m³/min	23.7 CFM	CSA TUV UL	0.222 lb	100.7 g	12 VDC
Sanyo Denki America Inc. 109P0812M202	-20 °C	70 °C	-20 C	70 °C	0.075 in H2O	18.6 Pa	80 mm	80 mm	2 Wire Leads	Tubeaxial		21 dB(A)	Ball	10.2 VDC	13.8 VDC	Plastic	2000 RPM	840 mW	32 mm	Plastic	0.644 m³/min	23 CFM	CSA TUV UL	0.331 lb	150.14 g	12 VDC	70 mA
Sanyo Denki America Inc. 109P0812H601	-20 °C	70 °C	-20 C	70 °C	0.118 in H2O	29.4 Pa	80 mm	80 mm	3 Wire Leads	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	31 dB(A)	Ball	10.2 VDC	13.8 VDC	Plastic	2900 RPM	2.52 W	20 mm	Plastic	0.832 mł/min	29.7 CFM	CSA TUV UL	0.222 lb	100.7 g	12 VDC	0.21 A
Sanyo Denki America Inc. 109P0812M702	-20 °C	70 °C	-20 C	70 °C	0.051 in H2O	12.7 Pa	80 mm	80 mm	2 Wire Leads	Tubeaxial		21 dB(A)	Ball	7 V	13.8 VDC	Plastic	2000 RPM	1.08 W		Plastic	0.563 m³/min	20.1 CFM	CSA TUV UL	0.15 lbs	68.04 g	12 VDC	0.09 A	15 mm
Sanyo Denki America Inc. 109P0812H702	-20 °C	70 °C	-20 C	70 °C	0.118 in H2O	29.4 Pa	80 mm	80 mm	2 Wire Leads	Tubeaxial		31 dB(A)	Ball	7 V	13.8 VDC	Plastic	3100 RPM	2.4 W		Plastic	0.899 mł/min	32.1 CFM	CSA TUV UL	0.15 lbs	68.04 g	12 VDC	0.2 A	15 mm	40000 Hrs
Sanyo Denki America Inc. 109P0812H6D01	-20 °C	70 °C	-20 C	70 °C	0.118 in H2O	29.4 Pa	80 mm	80 mm	3 Wire Leads	Tubeaxial	Locked Rotor Sensor	31 dB(A)	Ball	10.2 VDC	13.8 VDC	Plastic	2900 RPM	2.52 W	20 mm	Plastic	0.832 mł/min	29.7 CFM	CSA TUV UL	0.222 lb	100.7 g	12 VDC	0.21 A
Sanyo Denki America Inc. 109P0812C601	-20 °C	60 °C	-20 C	60 °C	0.185 in H2O	46.1 Pa	80 mm	80 mm	3 Wire Leads	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	39 dB(A)	Ball	10.2 VDC	13.8 VDC	Plastic	3700 RPM	3.48 W	20 mm	Plastic	1.06 mł/min	37.8 CFM	CSA TUV UL	0.222 lb	100.7 g	12 VDC	0.29 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.58
		10	$ 12.11
		25	$ 11.57
		50	$ 11.17
		100	$ 10.79
		250	$ 10.31

Description

General part information

109P0812 Series

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 32.1 CFM (0.899m³/min) 2 Wire Leads
