109P0812M702

Obsolete

Sanyo Denki America Inc.

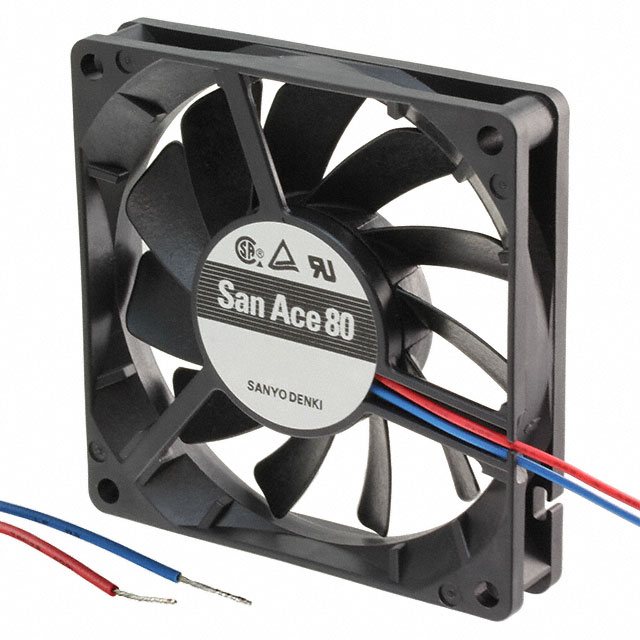

FAN AXIAL 80X15MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Handling Instructions for Fan Motors

109P0812M702

Obsolete

Sanyo Denki America Inc.

FAN AXIAL 80X15MM 12VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Handling Instructions for Fan Motors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109P0812M702

Air Flow	0.563 m³/min
Air Flow	20.1 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.09 A
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Plastic
Noise	21 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	1.08 W
RPM	2000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.051 in H2O
Static Pressure	12.7 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	0.15 lbs
Weight	68.04 g
Width [x]	15 mm

109P0812 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Size / Dimension [y]	Size / Dimension [x]	Termination	Fan Type	Features	Noise	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	RPM	Power (Watts)	Width [y]	Material - Frame	Air Flow	Air Flow	Approval Agency	Weight	Weight	Voltage - Rated	Current Rating (Amps)	Width [x]	Lifetime @ Temp.
Sanyo Denki America Inc. 109P0812M6D01	-20 °C	70 °C	-20 C	70 °C	0.075 in H2O	18.6 Pa	80 mm	80 mm	3 Wire Leads	Tubeaxial	Locked Rotor Sensor	25 dB(A)	Ball	10.2 VDC	13.8 VDC	Plastic	2300 RPM	1.56 W	20 mm	Plastic	0.664 m³/min	23.7 CFM	CSA TUV UL	0.222 lb	100.7 g	12 VDC
Sanyo Denki America Inc. 109P0812M601	-20 °C	70 °C	-20 C	70 °C	0.075 in H2O	18.6 Pa	80 mm	80 mm	3 Wire Leads	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	25 dB(A)	Ball	10.2 VDC	13.8 VDC	Plastic	2300 RPM	1.56 W	20 mm	Plastic	0.664 m³/min	23.7 CFM	CSA TUV UL	0.222 lb	100.7 g	12 VDC
Sanyo Denki America Inc. 109P0812H602	-20 °C	70 °C	-20 C	70 °C	0.118 in H2O	29.4 Pa	80 mm	80 mm	2 Wire Leads	Tubeaxial		31 dB(A)	Ball	10.2 VDC	13.8 VDC	Plastic	2900 RPM	2.52 W	20 mm	Plastic	0.832 mł/min	29.7 CFM	CSA TUV UL	0.222 lb	100.7 g	12 VDC	0.21 A
Sanyo Denki America Inc. 109P0812M602	-20 °C	70 °C	-20 C	70 °C	0.075 in H2O	18.6 Pa	80 mm	80 mm	2 Wire Leads	Tubeaxial		25 dB(A)	Ball	10.2 VDC	13.8 VDC	Plastic	2300 RPM	1.56 W	20 mm	Plastic	0.664 m³/min	23.7 CFM	CSA TUV UL	0.222 lb	100.7 g	12 VDC
Sanyo Denki America Inc. 109P0812M202	-20 °C	70 °C	-20 C	70 °C	0.075 in H2O	18.6 Pa	80 mm	80 mm	2 Wire Leads	Tubeaxial		21 dB(A)	Ball	10.2 VDC	13.8 VDC	Plastic	2000 RPM	840 mW	32 mm	Plastic	0.644 m³/min	23 CFM	CSA TUV UL	0.331 lb	150.14 g	12 VDC	70 mA
Sanyo Denki America Inc. 109P0812H601	-20 °C	70 °C	-20 C	70 °C	0.118 in H2O	29.4 Pa	80 mm	80 mm	3 Wire Leads	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	31 dB(A)	Ball	10.2 VDC	13.8 VDC	Plastic	2900 RPM	2.52 W	20 mm	Plastic	0.832 mł/min	29.7 CFM	CSA TUV UL	0.222 lb	100.7 g	12 VDC	0.21 A
Sanyo Denki America Inc. 109P0812M702	-20 °C	70 °C	-20 C	70 °C	0.051 in H2O	12.7 Pa	80 mm	80 mm	2 Wire Leads	Tubeaxial		21 dB(A)	Ball	7 V	13.8 VDC	Plastic	2000 RPM	1.08 W		Plastic	0.563 m³/min	20.1 CFM	CSA TUV UL	0.15 lbs	68.04 g	12 VDC	0.09 A	15 mm
Sanyo Denki America Inc. 109P0812H702	-20 °C	70 °C	-20 C	70 °C	0.118 in H2O	29.4 Pa	80 mm	80 mm	2 Wire Leads	Tubeaxial		31 dB(A)	Ball	7 V	13.8 VDC	Plastic	3100 RPM	2.4 W		Plastic	0.899 mł/min	32.1 CFM	CSA TUV UL	0.15 lbs	68.04 g	12 VDC	0.2 A	15 mm	40000 Hrs
Sanyo Denki America Inc. 109P0812H6D01	-20 °C	70 °C	-20 C	70 °C	0.118 in H2O	29.4 Pa	80 mm	80 mm	3 Wire Leads	Tubeaxial	Locked Rotor Sensor	31 dB(A)	Ball	10.2 VDC	13.8 VDC	Plastic	2900 RPM	2.52 W	20 mm	Plastic	0.832 mł/min	29.7 CFM	CSA TUV UL	0.222 lb	100.7 g	12 VDC	0.21 A
Sanyo Denki America Inc. 109P0812C601	-20 °C	60 °C	-20 C	60 °C	0.185 in H2O	46.1 Pa	80 mm	80 mm	3 Wire Leads	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	39 dB(A)	Ball	10.2 VDC	13.8 VDC	Plastic	3700 RPM	3.48 W	20 mm	Plastic	1.06 mł/min	37.8 CFM	CSA TUV UL	0.222 lb	100.7 g	12 VDC	0.29 A
