1N4148X-TP

Active

Micro Commercial Components

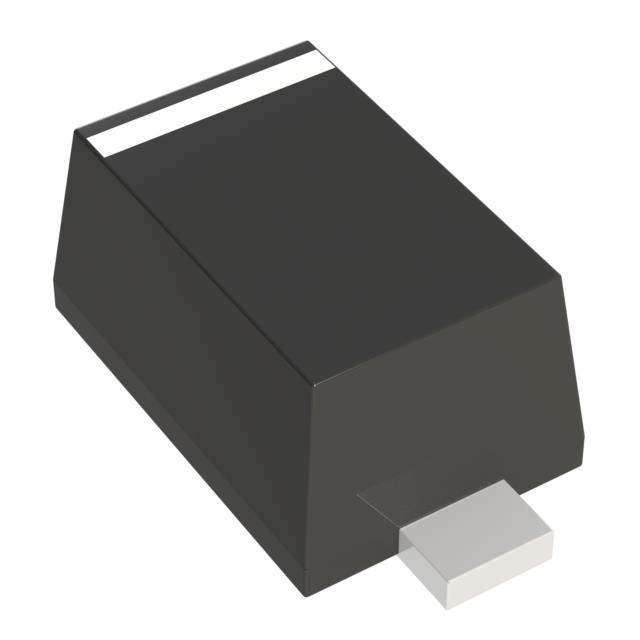

DIODE STANDARD 75V 150MA SOD523

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1N4148X-TP

Active

Micro Commercial Components

DIODE STANDARD 75V 150MA SOD523

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1N4148X-TP

Capacitance @ Vr, F	2 pF
Current - Average Rectified (Io)	150 mA
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	SC-79, SOD-523
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOD-523
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	75 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.25 V

1N4148 Series

Part	Current - Reverse Leakage @ Vr	Supplier Device Package	Capacitance @ Vr, F	Package / Case	Mounting Type	Voltage - Forward (Vf) (Max) @ If [Max]	Reverse Recovery Time (trr)	Technology	Speed	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Qualification	Grade
Micro Commercial Components 1N4148X-TP-HF	1 µA	SOD-523	2 pF	SC-79 SOD-523	Surface Mount	1.25 V	4 ns	Standard	Any Speed	200 mA	150 °C	-65 C	150 mA	75 V
Micro Commercial Components 1N4148W-TP-HF	1 µA	SOD-123	2 pF	SOD-123	Surface Mount	1.25 V	4 ns	Standard	Any Speed	200 mA	150 °C	-65 C	150 mA	100 V
Micro Commercial Components 1N4148WX-TP	5 µA	SOD-323		SC-76 SOD-323	Surface Mount		4 ns	Standard	Any Speed	200 mA	150 °C	-55 °C	150 mA	75 V	1 V
Micro Commercial Components 1N4148WHE3-TP	1 µA	SOD-123	2 pF	SOD-123	Surface Mount	1.25 V	4 ns	Standard	Any Speed	200 mA	150 °C	-65 C	150 mA	100 V		AEC-Q101	Automotive
Micro Commercial Components 1N4148WXL-TP	5 µA	SOD-323FL		SC-90 SOD-323F	Surface Mount		4 ns	Standard	Any Speed	200 mA	150 °C	-55 °C	150 mA	100 V	1 V
Micro Commercial Components 1N4148X-TP	1 µA	SOD-523	2 pF	SC-79 SOD-523	Surface Mount	1.25 V	4 ns	Standard	Any Speed	200 mA	150 °C	-65 C	150 mA	75 V
Micro Commercial Components 1N4148W-TPS01	1 µA	SOD-123	2 pF	SOD-123	Surface Mount	1.25 V	4 ns	Standard	Any Speed	200 mA	150 °C	-65 C	150 mA	100 V
Micro Commercial Components 1N4148W-TP	1 µA	SOD-123	2 pF	SOD-123	Surface Mount	1.25 V	4 ns	Standard	Any Speed	200 mA	150 °C	-65 C	150 mA	100 V
Micro Commercial Components 1N4148W-13P	1 µA	SOD-123	2 pF	SOD-123	Surface Mount	1.25 V	4 ns	Standard	Any Speed	200 mA	150 °C	-65 C	150 mA	100 V
Micro Commercial Components 1N4448WHE3-TP	2.5 µA	SOD-123	4 pF	SOD-123	Surface Mount		4 ns	Standard		200 mA 500 ns	125 °C	-55 °C	250 mA	100 V	1 V	AEC-Q101	Automotive
