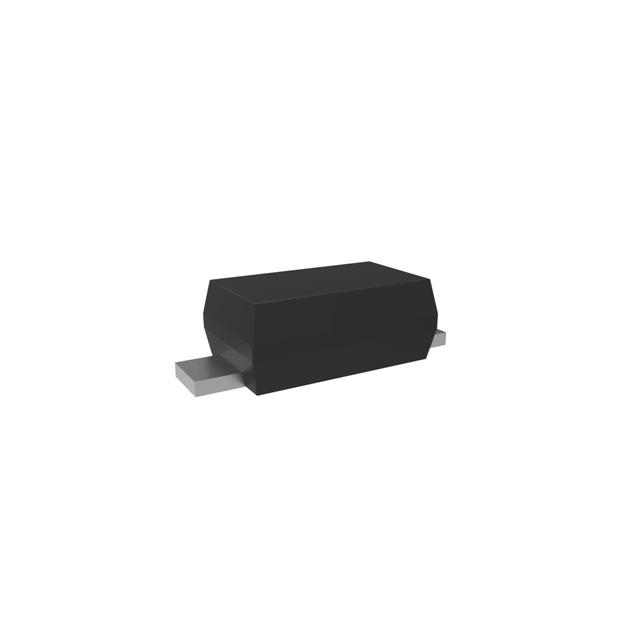

1N4148WXL-TP

Active

Micro Commercial Components

DIODE GP 100V 150MA SOD323FL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1N4148WXL-TP

Active

Micro Commercial Components

DIODE GP 100V 150MA SOD323FL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1N4148WXL-TP

Current - Average Rectified (Io)	150 mA
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-323F, SC-90
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOD-323FL
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	1 V

1N4148 Series

Part	Current - Reverse Leakage @ Vr	Supplier Device Package	Capacitance @ Vr, F	Package / Case	Mounting Type	Voltage - Forward (Vf) (Max) @ If [Max]	Reverse Recovery Time (trr)	Technology	Speed	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Qualification	Grade
Micro Commercial Components 1N4148X-TP-HF	1 µA	SOD-523	2 pF	SC-79 SOD-523	Surface Mount	1.25 V	4 ns	Standard	Any Speed	200 mA	150 °C	-65 C	150 mA	75 V
Micro Commercial Components 1N4148W-TP-HF	1 µA	SOD-123	2 pF	SOD-123	Surface Mount	1.25 V	4 ns	Standard	Any Speed	200 mA	150 °C	-65 C	150 mA	100 V
Micro Commercial Components 1N4148WX-TP	5 µA	SOD-323		SC-76 SOD-323	Surface Mount		4 ns	Standard	Any Speed	200 mA	150 °C	-55 °C	150 mA	75 V	1 V
Micro Commercial Components 1N4148WHE3-TP	1 µA	SOD-123	2 pF	SOD-123	Surface Mount	1.25 V	4 ns	Standard	Any Speed	200 mA	150 °C	-65 C	150 mA	100 V		AEC-Q101	Automotive
Micro Commercial Components 1N4148WXL-TP	5 µA	SOD-323FL		SC-90 SOD-323F	Surface Mount		4 ns	Standard	Any Speed	200 mA	150 °C	-55 °C	150 mA	100 V	1 V
Micro Commercial Components 1N4148X-TP	1 µA	SOD-523	2 pF	SC-79 SOD-523	Surface Mount	1.25 V	4 ns	Standard	Any Speed	200 mA	150 °C	-65 C	150 mA	75 V
Micro Commercial Components 1N4148W-TPS01	1 µA	SOD-123	2 pF	SOD-123	Surface Mount	1.25 V	4 ns	Standard	Any Speed	200 mA	150 °C	-65 C	150 mA	100 V
Micro Commercial Components 1N4148W-TP	1 µA	SOD-123	2 pF	SOD-123	Surface Mount	1.25 V	4 ns	Standard	Any Speed	200 mA	150 °C	-65 C	150 mA	100 V
Micro Commercial Components 1N4148W-13P	1 µA	SOD-123	2 pF	SOD-123	Surface Mount	1.25 V	4 ns	Standard	Any Speed	200 mA	150 °C	-65 C	150 mA	100 V
Micro Commercial Components 1N4448WHE3-TP	2.5 µA	SOD-123	4 pF	SOD-123	Surface Mount		4 ns	Standard		200 mA 500 ns	125 °C	-55 °C	250 mA	100 V	1 V	AEC-Q101	Automotive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.18
		10	$ 0.12
		100	$ 0.07
		500	$ 0.05
		1000	$ 0.04
	Digi-Reel®	1	$ 0.18
		10	$ 0.12
		100	$ 0.07
		500	$ 0.05
		1000	$ 0.04
	Tape & Reel (TR)	3000	$ 0.02
		6000	$ 0.02
		9000	$ 0.02
		30000	$ 0.02
		75000	$ 0.02

Description

General part information

1N4148 Series

Diode 100 V 150mA Surface Mount SOD-323FL
