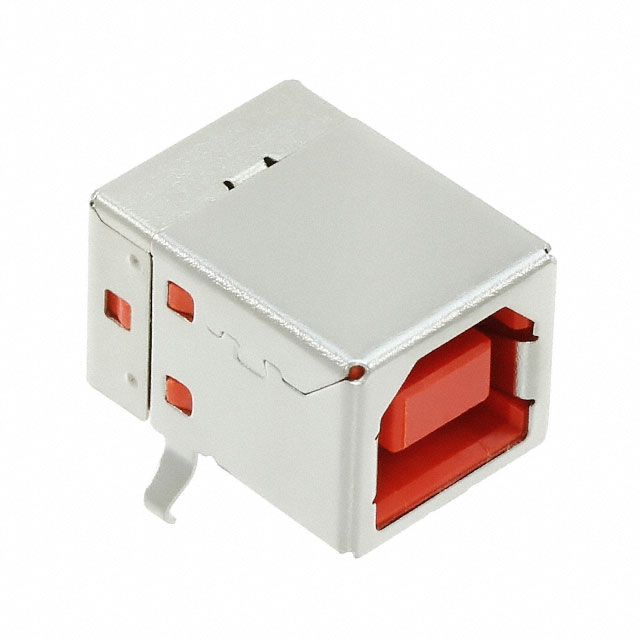

USBR-B-S-F-O-TH - USBR-B-S-F-O-TH

USBR-B-S-F-O-TH

Active
Samtec Inc.

USB CONNECTOR, USB TYPE B, USB 2.0, RECEPTACLE, 4 POSITIONS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUSBR DatasheetDatasheet+1
USBR-B-S-F-O-TH - USBR-B-S-F-O-TH

USBR-B-S-F-O-TH

Active
Samtec Inc.

USB CONNECTOR, USB TYPE B, USB 2.0, RECEPTACLE, 4 POSITIONS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsUSBR DatasheetDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationUSBR-B-S-F-O-TH
Connector TypeUSB-B
Contact FinishGold
GenderReceptacle
Insulation ColorOrange
Mating Cycles1500
Mounting FeatureHorizontal
Mounting TypeThrough Hole, Right Angle
Number of Contacts [custom]4
Number of Ports1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-50 °C
Shell/Shielding MaterialSteel, Phosphor Bronze
SpecificationsUSB 2.0
TerminationSolder
Voltage - Rated30 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 1.71
50$ 1.41
100$ 1.11
500$ 0.67
1000$ 0.64
NewarkEach 1$ 1.66
10$ 1.37
100$ 1.08
250$ 0.86
500$ 0.73
1000$ 0.68
2500$ 0.63

Description

General part information

USBR-B Series

USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
