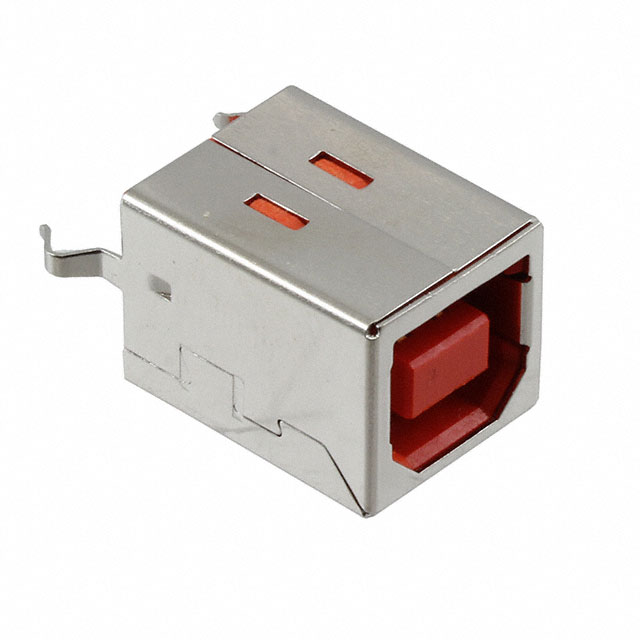

USBR-B-S-S-O-VT

Active

Samtec Inc.

CONN RCPT USB2.0 TYPEB 4POS VERT

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT USB2.0 TYPEB 4POS VERT

Technical Specifications

Parameters and characteristics for this part

Specification	USBR-B-S-S-O-VT

Connector Type	USB-B
Contact Finish	Gold
Gender	Receptacle
Insulation Color	Orange
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Vertical
Mounting Type	Through Hole
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-50 °C
Shell/Shielding Material	Phosphor Bronze
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 VAC

Part	Gender	Number of Ports	Mounting Feature	Termination	Connector Type	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Number of Contacts [custom]	Insulation Color	Mounting Type	Shell/Shielding Material	Voltage - Rated	Contact Finish	Specifications	Material Flammability Rating	Shielding
Samtec Inc. USBR-B-S-F-O-TH	Receptacle	1	Horizontal	Solder	USB-B	1500	85 °C	-50 °C	4	Orange	Through Hole Right Angle	Phosphor Bronze Steel	30 VAC	Gold	USB 2.0
Samtec Inc. USBR-B-S-S-O-VT	Receptacle	1	Vertical	Solder	USB-B	1500	85 °C	-50 °C	4	Orange	Through Hole	Phosphor Bronze	30 VAC	Gold	USB 2.0	UL94 V-0	Shielded
