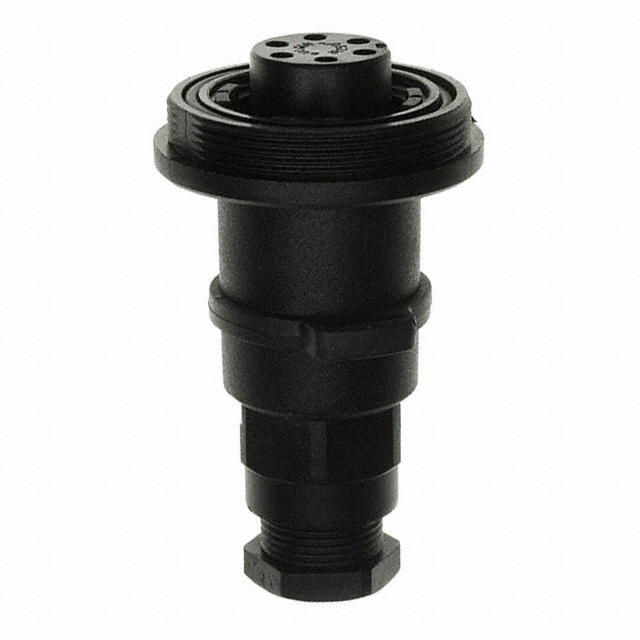

PX0740/S
ActiveBULGIN LIMITED
CONN RCPT FMALE 6P NICKEL SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PX0740/S
ActiveBULGIN LIMITED
CONN RCPT FMALE 6P NICKEL SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0740/S |
|---|---|
| Backshell Material, Plating | Nylon, Polyamide (PA), Glass Filled |
| Cable Opening [Max] [custom] | 8 mm |
| Cable Opening [Max] [custom] | 0.315 in |
| Cable Opening [Min] [custom] | 6 mm |
| Cable Opening [Min] [custom] | 0.236 in |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Nickel |
| Contact Material | Brass |
| Current Rating (Amps) | 3 A |
| Features | Backshell |
| Ingress Protection | IP68, IP69K |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 277 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 31.32 | |
| 10 | $ 27.42 | |||
| 25 | $ 26.24 | |||
| 60 | $ 25.39 | |||
| 120 | $ 24.55 | |||
| 300 | $ 23.19 | |||
Description
General part information
PX0740 Series
6 (Power) Position Circular Connector Receptacle, Female Sockets Screw
