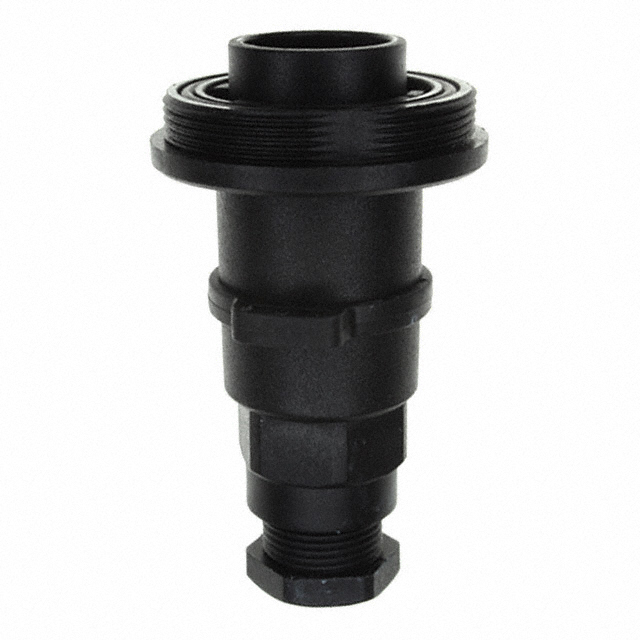

PX0740/P

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, CABLE MOUNT PLUG, 6 CONTACTS, SCREW PIN, THREADED

Search across all available documentation for this part.

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, CABLE MOUNT PLUG, 6 CONTACTS, SCREW PIN, THREADED

Technical Specifications

Parameters and characteristics for this part

Specification	PX0740/P

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Cable Opening [Max] [custom]	8 mm
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Min] [custom]	6 mm
Cable Opening [Min] [custom]	0.236 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	3 A
Features	Backshell
Ingress Protection	IP68, IP69K
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Screw
Voltage Rating	277 VAC/DC

Part	Primary Material	Termination	Color	Shell Material	Voltage Rating	Shielding	Mounting Type	Current Rating (Amps)	Orientation	Number of Positions	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Contact Finish - Mating	Contact Material	Insert Material	Features	Backshell Material, Plating	Material Flammability Rating	Connector Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]
BULGIN LIMITED PX0740/S	Plastic	Screw	Black	Glass Filled Nylon Polyamide (PA)	277 VAC/DC	Unshielded	Free Hanging (In-Line)	3 A	Keyed	6	8 mm	6 mm	0.315 in	0.236 in	Nickel	Brass	Nylon Polyamide (PA)	Backshell	Glass Filled Nylon Polyamide (PA)	UL94 HB	Receptacle Female Sockets	IP68 IP69K	-20 C	70 °C
BULGIN LIMITED PX0740/P	Plastic	Screw	Black	Glass Filled Nylon Polyamide (PA)	277 VAC/DC	Unshielded	Free Hanging (In-Line)	3 A	Keyed	6	8 mm	6 mm	0.315 in	0.236 in	Nickel	Brass	Nylon Polyamide (PA)	Backshell	Glass Filled Nylon Polyamide (PA)	UL94 HB	Male Pins Receptacle	IP68 IP69K	-20 C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (Power) Position Circular Connector Receptacle, Male Pins Screw
