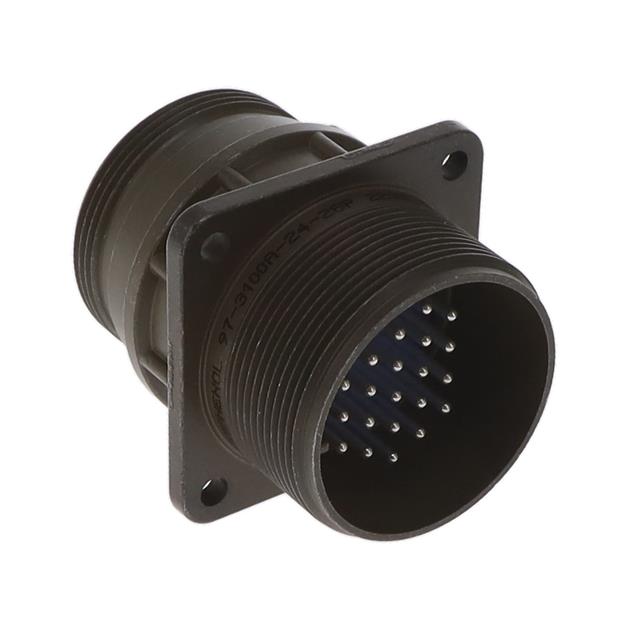

97-3100A-24-28P

Active

Amphenol Industrial Operations

RECEPT

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	97-3100A-24-28P

Applications	Industrial, Automotive
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Backshell
Insert Material	Diallyl Phthalate (DAP)
Mounting Feature	Flange
Number of Positions	24
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	28
Shell Size - Insert [Min]	24
Shielding	Unshielded

Part	Mounting Feature	Shell Finish	Connector Type	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shielding	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Finish - Mating	Shell Material	Contact Material	Orientation	Features	Applications	Insert Material	Color	Shell Size - Insert
Amphenol Industrial Operations 97-3100A-24-28P	Flange	Olive Drab Chromate over Cadmium	Male Pins Receptacle	Metal	-55 °C	125 °C	24	Unshielded	28	24	Silver	Aluminum Alloy	Copper Alloy	N	Backshell	Automotive Industrial	Diallyl Phthalate (DAP)	Olive Drab
Amphenol Industrial Operations 97-3100A-24-11S	Flange	Olive Drab Chromate over Cadmium	Receptacle Female Sockets	Metal	-55 °C	125 °C	9	Unshielded			Silver	Aluminum Alloy	Copper Alloy	N	Backshell	Automotive Industrial	Diallyl Phthalate (DAP)	Olive Drab	24-11

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Position Circular Connector
