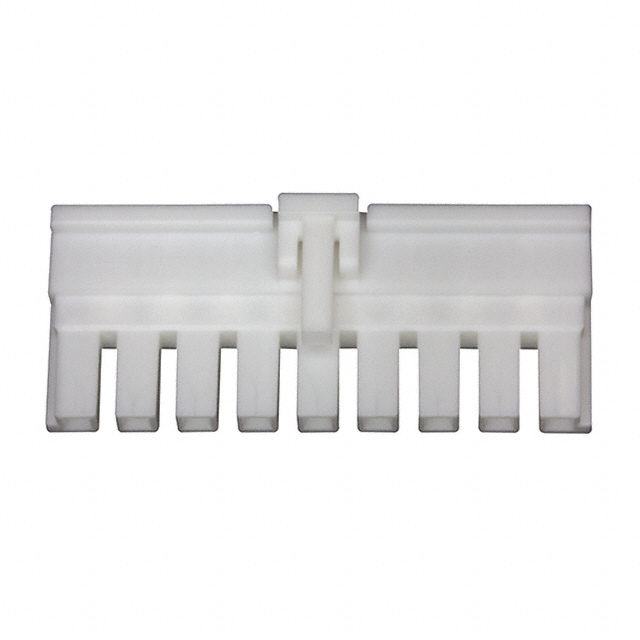

DF5A-9S-5C

LTB

Hirose Electric USA, Inc.

5.0MM PITCH MINIATURE POTTING FOR SECONDARY POWER SUPPLY

Deep-Dive with AI

Search across all available documentation for this part.

DF5A-9S-5C

LTB

Hirose Electric USA, Inc.

5.0MM PITCH MINIATURE POTTING FOR SECONDARY POWER SUPPLY

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF5A-9S-5C

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in

DF5A Series

Part	Insulation Material	Pitch [x]	Pitch [x]	Color	Contact Termination	Number of Rows	Note	Mounting Type	Fastening Type	Contact Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Shrouding	Insulation Color	Termination	Contact Length - Post	Contact Length - Post	Contact Shape	Mated Stacking Heights	Number of Positions Loaded	Contact Material	Insulation Height	Insulation Height	Number of Positions
Hirose Electric USA, Inc. DF5A-5S-5C	Nylon Polyamide (PA)	5 mm	0.197 in	White	Crimp	1	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	Female Socket	Receptacle	-35 °C	85 °C
Hirose Electric USA, Inc. DF5A-5P-5DSA(35)	Nylon Polyamide (PA)					1		Through Hole	Locking Ramp	Male Pin	Header	-35 °C	85 °C	Board to Cable/Wire	1 µm	39.4 µin	Board Guide	Tin	5 mm	0.197 "	UL94 V-0	Shrouded - 4 Wall	Beige	Solder	3.5 mm	0.138 in	Square	22.5 mm	All	Brass	0.591 in	15 mm
Hirose Electric USA, Inc. DF5A-8P-5DSA(05)	Nylon Polyamide (PA)					1		Through Hole	Locking Ramp	Male Pin	Header	-35 °C	85 °C	Board to Cable/Wire	1 µm	39.4 µin	Board Guide	Tin	5 mm	0.197 "	UL94 V-0	Shrouded - 4 Wall	Beige	Solder	3.5 mm	0.138 in	Square	22.5 mm	All	Brass	0.591 in	15 mm	8
Hirose Electric USA, Inc. DF5A-5P-5DSA	Nylon Polyamide (PA)					1		Through Hole	Locking Ramp	Male Pin	Header	-35 °C	85 °C	Board to Cable/Wire	1 µm	39.4 µin	Board Guide	Tin	5 mm	0.197 "	UL94 V-0	Shrouded - 4 Wall	Beige	Solder	3.5 mm	0.138 in	Square	22.5 mm	All	Brass	0.591 in	15 mm
Hirose Electric USA, Inc. DF5A-5P-5DSA(78)
Hirose Electric USA, Inc. DF5A-4S-5C	Nylon Polyamide (PA)	5 mm	0.197 in	White	Crimp	1	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	Female Socket	Receptacle	-35 °C	85 °C																				4
Hirose Electric USA, Inc. DF5A-5S-5C(18)	Nylon Polyamide (PA)	5 mm	0.197 in	Red	Crimp	1	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	Female Socket	Receptacle	-35 °C	85 °C
Hirose Electric USA, Inc. DF5A-10P-5DSA(05)	Nylon Polyamide (PA)					1		Through Hole	Locking Ramp	Male Pin	Header	-35 °C	85 °C	Board to Cable/Wire			Board Guide	Tin	5 mm	0.197 "	UL94 V-0	Shrouded - 4 Wall	Beige	Solder	3.5 mm	0.138 in	Square	22.5 mm	All	Brass	0.591 in	15 mm	10
Hirose Electric USA, Inc. DF5A-2P-5DSA(05)	Nylon Polyamide (PA)					1		Through Hole	Locking Ramp	Male Pin	Header	-35 °C	85 °C	Board to Cable/Wire	1 µm	39.4 µin	Board Guide	Tin	5 mm	0.197 "	UL94 V-0	Shrouded - 4 Wall	Beige	Solder	3.5 mm	0.138 in	Square	22.5 mm	All	Brass	0.591 in	15 mm	2
Hirose Electric USA, Inc. DF5A-9S-5C	Nylon Polyamide (PA)	5 mm	0.197 in	White	Crimp	1	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	Female Socket	Receptacle	-35 °C	85 °C																				9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.58
		10	$ 0.44
		25	$ 0.39
		50	$ 0.36
		100	$ 0.34
		250	$ 0.30
		500	$ 0.28
		1000	$ 0.26
		2500	$ 0.24
Newark	Each	1	$ 0.36
		5000	$ 0.32

Description

General part information

DF5A Series

9 Rectangular Connectors - Housings Receptacle White 0.197" (5.00mm)
