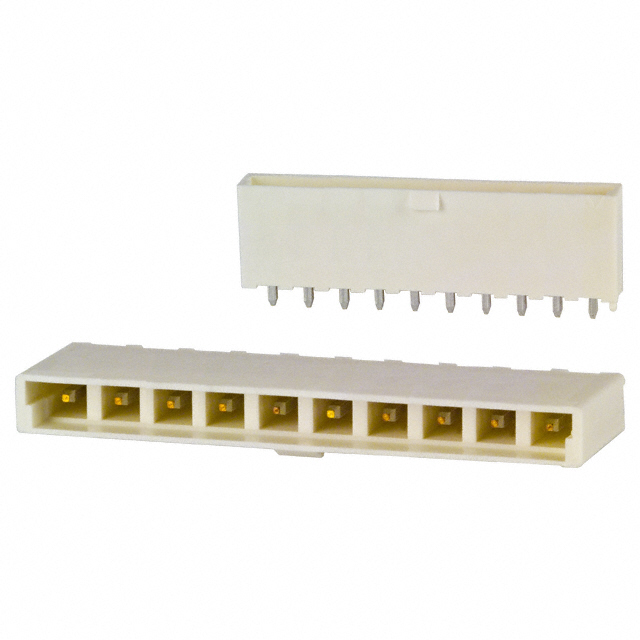

DF5A-10P-5DSA(05)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER VERT 10POS 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DF5A-10P-5DSA(05)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER VERT 10POS 5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF5A-10P-5DSA(05)

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Beige
Insulation Height	0.591 in
Insulation Height	15 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	22.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	5 mm
Pitch - Mating	0.197 "
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

DF5A Series

Part	Insulation Material	Pitch [x]	Pitch [x]	Color	Contact Termination	Number of Rows	Note	Mounting Type	Fastening Type	Contact Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Shrouding	Insulation Color	Termination	Contact Length - Post	Contact Length - Post	Contact Shape	Mated Stacking Heights	Number of Positions Loaded	Contact Material	Insulation Height	Insulation Height	Number of Positions
Hirose Electric USA, Inc. DF5A-5S-5C	Nylon Polyamide (PA)	5 mm	0.197 in	White	Crimp	1	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	Female Socket	Receptacle	-35 °C	85 °C
Hirose Electric USA, Inc. DF5A-5P-5DSA(35)	Nylon Polyamide (PA)					1		Through Hole	Locking Ramp	Male Pin	Header	-35 °C	85 °C	Board to Cable/Wire	1 µm	39.4 µin	Board Guide	Tin	5 mm	0.197 "	UL94 V-0	Shrouded - 4 Wall	Beige	Solder	3.5 mm	0.138 in	Square	22.5 mm	All	Brass	0.591 in	15 mm
Hirose Electric USA, Inc. DF5A-8P-5DSA(05)	Nylon Polyamide (PA)					1		Through Hole	Locking Ramp	Male Pin	Header	-35 °C	85 °C	Board to Cable/Wire	1 µm	39.4 µin	Board Guide	Tin	5 mm	0.197 "	UL94 V-0	Shrouded - 4 Wall	Beige	Solder	3.5 mm	0.138 in	Square	22.5 mm	All	Brass	0.591 in	15 mm	8
Hirose Electric USA, Inc. DF5A-5P-5DSA	Nylon Polyamide (PA)					1		Through Hole	Locking Ramp	Male Pin	Header	-35 °C	85 °C	Board to Cable/Wire	1 µm	39.4 µin	Board Guide	Tin	5 mm	0.197 "	UL94 V-0	Shrouded - 4 Wall	Beige	Solder	3.5 mm	0.138 in	Square	22.5 mm	All	Brass	0.591 in	15 mm
Hirose Electric USA, Inc. DF5A-5P-5DSA(78)
Hirose Electric USA, Inc. DF5A-4S-5C	Nylon Polyamide (PA)	5 mm	0.197 in	White	Crimp	1	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	Female Socket	Receptacle	-35 °C	85 °C																				4
Hirose Electric USA, Inc. DF5A-5S-5C(18)	Nylon Polyamide (PA)	5 mm	0.197 in	Red	Crimp	1	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	Female Socket	Receptacle	-35 °C	85 °C
Hirose Electric USA, Inc. DF5A-10P-5DSA(05)	Nylon Polyamide (PA)					1		Through Hole	Locking Ramp	Male Pin	Header	-35 °C	85 °C	Board to Cable/Wire			Board Guide	Tin	5 mm	0.197 "	UL94 V-0	Shrouded - 4 Wall	Beige	Solder	3.5 mm	0.138 in	Square	22.5 mm	All	Brass	0.591 in	15 mm	10
Hirose Electric USA, Inc. DF5A-2P-5DSA(05)	Nylon Polyamide (PA)					1		Through Hole	Locking Ramp	Male Pin	Header	-35 °C	85 °C	Board to Cable/Wire	1 µm	39.4 µin	Board Guide	Tin	5 mm	0.197 "	UL94 V-0	Shrouded - 4 Wall	Beige	Solder	3.5 mm	0.138 in	Square	22.5 mm	All	Brass	0.591 in	15 mm	2
Hirose Electric USA, Inc. DF5A-9S-5C	Nylon Polyamide (PA)	5 mm	0.197 in	White	Crimp	1	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	Female Socket	Receptacle	-35 °C	85 °C																				9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DF5A Series

Connector Header Through Hole 10 position 0.197" (5.00mm)
