857-304

Active

WAGO Corporation

POWER RELAY, SPST, 24 VDC, 6 A, 857 SERIES, DIN RAIL, DC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

857-304

Active

WAGO Corporation

POWER RELAY, SPST, 24 VDC, 6 A, 857 SERIES, DIN RAIL, DC

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-304

Approval Agency	EAC, UL
Coil Current	10 mA
Coil Resistance	2.4 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Socket Included
Load - Max Switching	1500 VA
Mounting Type	DIN Rail
Must Operate Voltage	4.8 VDC
Must Release Voltage	3.6 VDC
Operate Time	8 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	8 ms
Switching Voltage	250 VAC
Termination Style	Spring Terminal

857 Series

Part	Termination Style	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Contact Rating (Current)	Relay Type	Load - Max Switching	Contact Material	Coil Voltage	Switching Voltage	Approval Agency	Release Time	Mounting Type	Coil Type	Output Type	Output Range [Min]	Output Range [Max]	Voltage - Supply	Isolation	Type	Input Type	Must Operate Voltage	Coil Current	Features	Must Release Voltage	Coil Resistance
WAGO Corporation 857-152	PC Pin	SPDT (1 Form C)	85 °C	-40 °C	8 ms	6 A	General Purpose	1500 VA	Silver Tin Oxide (AgSnO)	24 VDC	250 VAC	UL	4 ms	Through Hole	Non Latching
WAGO Corporation 857-400	Spring Terminal		70 °C	-25 °C										DIN Rail		Current Voltage	0 mA 0 VDC	10 VDC 20 mA	24 VDC	2500 VDC	Isolation Amplifier	Current Voltage
WAGO Corporation 857-304	Spring Terminal	SPDT (1 Form C)	60 °C	-40 °C	8 ms	6 A	General Purpose	1500 VA	Silver Tin Oxide (AgSnO)	24 VDC	250 VAC	EAC UL	8 ms	DIN Rail	Non Latching								4.8 VDC	10 mA	Lighted Indicator Socket Included	3.6 VDC	2.4 kOhms
WAGO Corporation 857-423	Spring Terminal		70 °C	-25 °C										DIN Rail		Current	0 mA	20 mA	24 VDC	2500 VDC	Isolation Amplifier	Current Voltage
WAGO Corporation 857-357	Spring Terminal	SPDT (1 Form C)	60 °C	-40 °C	15 ms	6 A	General Purpose	1500 VA	Silver Tin Oxide (AgSnO)	115 VAC	250 VAC	EAC UL	25 ms	DIN Rail	Non Latching								92 VAC/DC	4 mA	Lighted Indicator		28800 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.87
		10	$ 26.48
		25	$ 25.08
		50	$ 23.69
		100	$ 22.30
		250	$ 20.90
		500	$ 19.51
Newark	Each	1	$ 33.11
		25	$ 31.41
		100	$ 29.56
		250	$ 27.86
		500	$ 25.87

Description

General part information

857 Series

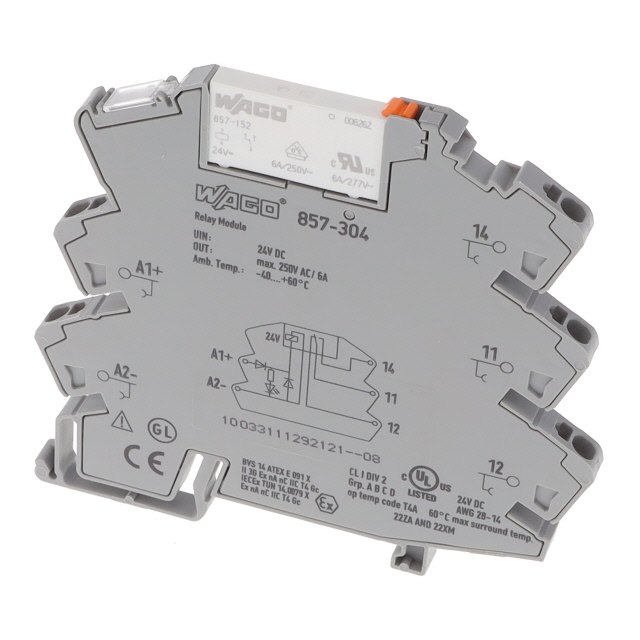

The 857-304 is a Relay Socket with miniature switching relay for 35mm DIN rail mounting. Relay modules with replaceable miniature switching relays for electrical isolation of sensor/actuator level and control/PLC.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
