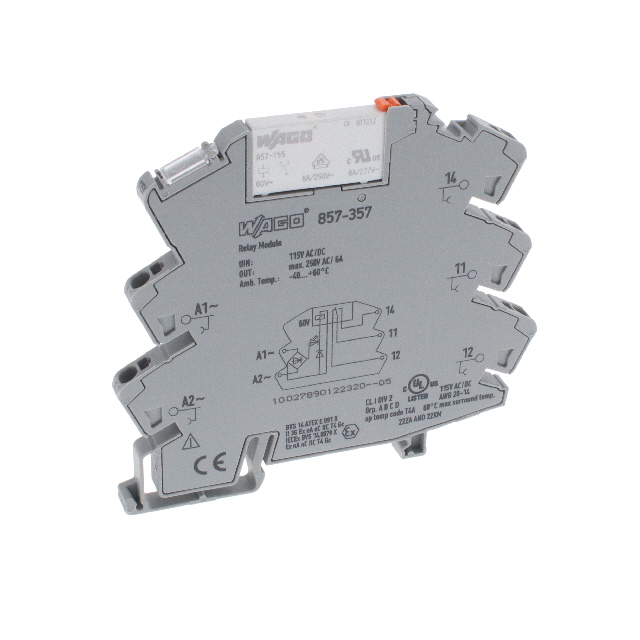

857-357

Active

WAGO Corporation

POWER RELAY, SPST, 115 VDC, 6 A, 857 SERIES, DIN RAIL, DC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

857-357

Active

WAGO Corporation

POWER RELAY, SPST, 115 VDC, 6 A, 857 SERIES, DIN RAIL, DC

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-357

Approval Agency	EAC, UL
Coil Current	4 mA
Coil Resistance	28800 Ohms
Coil Type	Non Latching
Coil Voltage	115 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	6 A
Features	Lighted Indicator
Load - Max Switching	1500 VA
Mounting Type	DIN Rail
Must Operate Voltage	92 VAC/DC
Operate Time	15 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	25 ms
Switching Voltage	250 VAC
Termination Style	Spring Terminal

857 Series

Part	Termination Style	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Contact Rating (Current)	Relay Type	Load - Max Switching	Contact Material	Coil Voltage	Switching Voltage	Approval Agency	Release Time	Mounting Type	Coil Type	Output Type	Output Range [Min]	Output Range [Max]	Voltage - Supply	Isolation	Type	Input Type	Must Operate Voltage	Coil Current	Features	Must Release Voltage	Coil Resistance
WAGO Corporation 857-152	PC Pin	SPDT (1 Form C)	85 °C	-40 °C	8 ms	6 A	General Purpose	1500 VA	Silver Tin Oxide (AgSnO)	24 VDC	250 VAC	UL	4 ms	Through Hole	Non Latching
WAGO Corporation 857-400	Spring Terminal		70 °C	-25 °C										DIN Rail		Current Voltage	0 mA 0 VDC	10 VDC 20 mA	24 VDC	2500 VDC	Isolation Amplifier	Current Voltage
WAGO Corporation 857-304	Spring Terminal	SPDT (1 Form C)	60 °C	-40 °C	8 ms	6 A	General Purpose	1500 VA	Silver Tin Oxide (AgSnO)	24 VDC	250 VAC	EAC UL	8 ms	DIN Rail	Non Latching								4.8 VDC	10 mA	Lighted Indicator Socket Included	3.6 VDC	2.4 kOhms
WAGO Corporation 857-423	Spring Terminal		70 °C	-25 °C										DIN Rail		Current	0 mA	20 mA	24 VDC	2500 VDC	Isolation Amplifier	Current Voltage
WAGO Corporation 857-357	Spring Terminal	SPDT (1 Form C)	60 °C	-40 °C	15 ms	6 A	General Purpose	1500 VA	Silver Tin Oxide (AgSnO)	115 VAC	250 VAC	EAC UL	25 ms	DIN Rail	Non Latching								92 VAC/DC	4 mA	Lighted Indicator		28800 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.22
		10	$ 33.46
		25	$ 31.70
		50	$ 29.94
		100	$ 28.18
		250	$ 26.42
Newark	Each	1	$ 40.78
		25	$ 38.62
		100	$ 36.29
		250	$ 34.13
		500	$ 31.98

Description

General part information

857 Series

The 857-357 is a general-purpose Pluggable Power Relay with SPST silver nickel contact and screw terminals. This 857-series relay socket with miniature switching relay for DIN 35 rail. It features industries smallest pitch, reduces panel space. Flexible jumping system eliminates redundant wiring. Safe operation with 3-way isolation.
