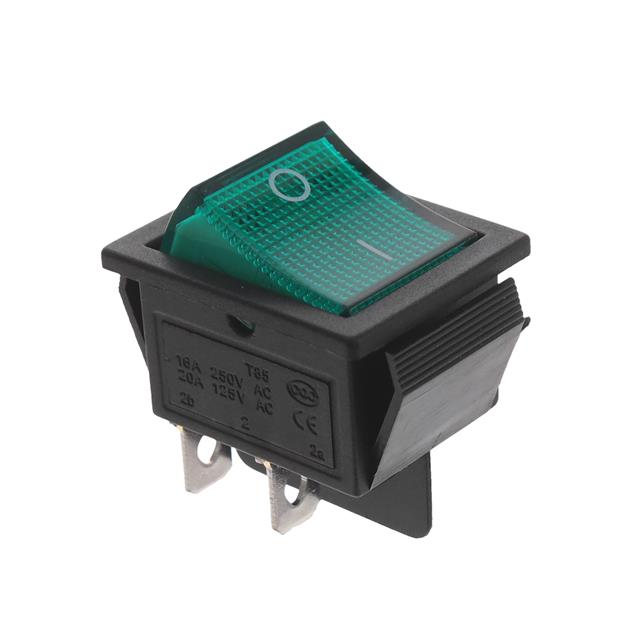

SW-R1-3A-E-LG13-0
ActiveAdam Tech
SWITCH ROCKER DPST 20A 125V
Deep-Dive with AI
Search across all available documentation for this part.
SW-R1-3A-E-LG13-0
ActiveAdam Tech
SWITCH ROCKER DPST 20A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SW-R1-3A-E-LG13-0 |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) - Illuminated |
| Circuit | DPST |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 20 A |
| Electrical Life | 10000 Cycles |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 12 VDC |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 30 mm |
| Panel Cutout Dimensions [y] | 22 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.29 | |
| 10 | $ 1.11 | |||
| 25 | $ 1.05 | |||
| 50 | $ 1.00 | |||
| 200 | $ 0.92 | |||
| 400 | $ 0.88 | |||
| 600 | $ 0.86 | |||
| 1000 | $ 0.83 | |||
Description
General part information
SW-R1 Series
Rocker Switch DPST 20A (AC) 125 V Panel Mount, Snap-In
