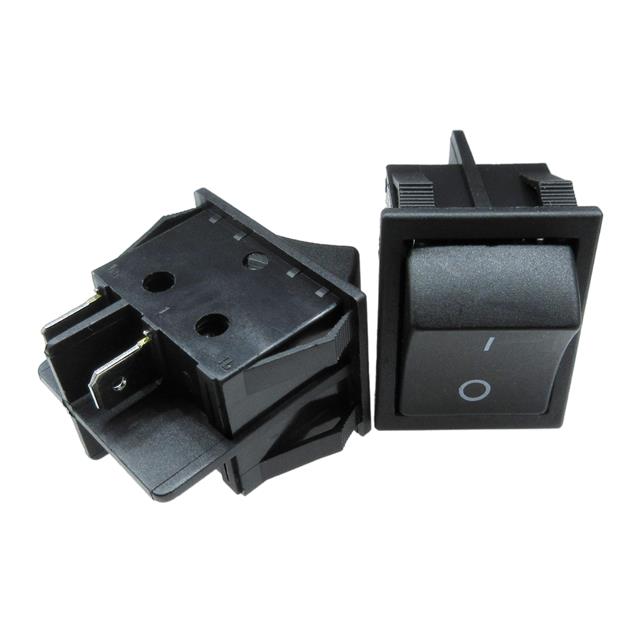

SW-R1-3C-E-1-2

Active

Adam Tech

SWITCH ROCKER DPST 20A 125V

Search across all available documentation for this part.

Active

Adam Tech

SWITCH ROCKER DPST 20A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Color - Actuator/Cap	Switch Function	Actuator Marking	Electrical Life	Mounting Type	Current Rating (Amps)	Termination Style	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Type, Color	Illumination Voltage (Nominal)
Adam Tech SW-R1-3A-E-B1-0	Concave (Curved)	Blue	On-Off	O -	10000 Cycles	Panel Mount Snap-In	20 A	Quick Connect - 0.250" (6.3mm)	DPST	-25 °C	85 °C	125 V
Adam Tech SW-R1-3C-E-1-2	Concave (Curved)	Black	Off-Mom	O -	10000 Cycles	Panel Mount Snap-In	20 A	Quick Connect - 0.250" (6.3mm)	DPST	-25 °C	85 °C	125 V	30 mm	22 mm
Adam Tech SW-R1-1A-E-W1-1	Concave (Curved)	White	On-Off	O -	10000 Cycles	Panel Mount Snap-In	20 A	Quick Connect - 0.250" (6.3mm)	SPST	-25 °C	85 °C	125 V	28 mm	10 mm
Adam Tech SW-R1-3A-E-LG13-0	Concave (Curved) - Illuminated	Green	On-Off	O -	10000 Cycles	Panel Mount Snap-In	20 A	Quick Connect - 0.250" (6.3mm)	DPST	-25 °C	85 °C	125 V	30 mm	22 mm	Green LED	12 VDC
Adam Tech SW-R1-3A-E-Y2-0	Concave (Curved)	Amber	On-Off	ON OFF Vertical	10000 Cycles	Panel Mount Snap-In	20 A	Quick Connect - 0.250" (6.3mm)	DPST	-25 °C	85 °C	125 V
