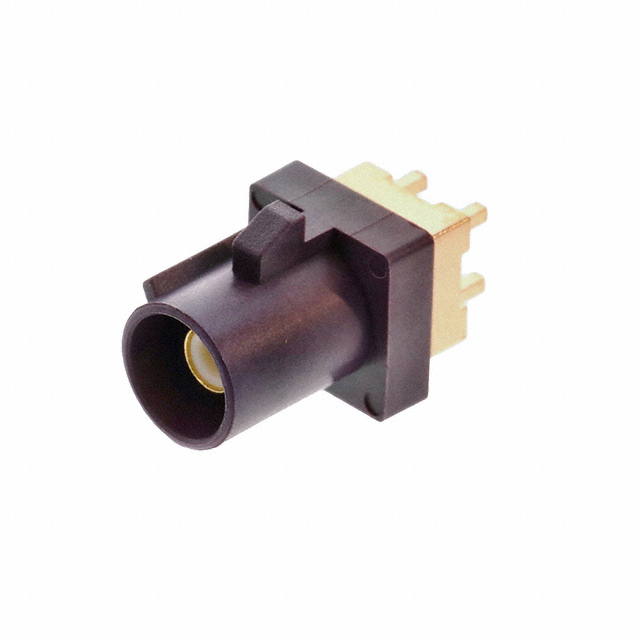

RF55-30D-T-00-50-G-SH
ActiveAdam Tech
FAKRA PLUG SMB TYPE: VERTICAL, S
Deep-Dive with AI
Search across all available documentation for this part.
RF55-30D-T-00-50-G-SH
ActiveAdam Tech
FAKRA PLUG SMB TYPE: VERTICAL, S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RF55-30D-T-00-50-G-SH |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB, Fakra |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Locking Ramp |
| Features | Code D |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Bordeaux, Violet |
| Impedance | 50 Ohms |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.88 | |
| 10 | $ 5.27 | |||
| 25 | $ 4.75 | |||
| 40 | $ 4.51 | |||
| 80 | $ 4.19 | |||
| 230 | $ 3.74 | |||
| 440 | $ 3.51 | |||
| 945 | $ 3.25 | |||
| 2400 | $ 2.97 | |||
Description
General part information
RF55-30 Series
SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole Solder
