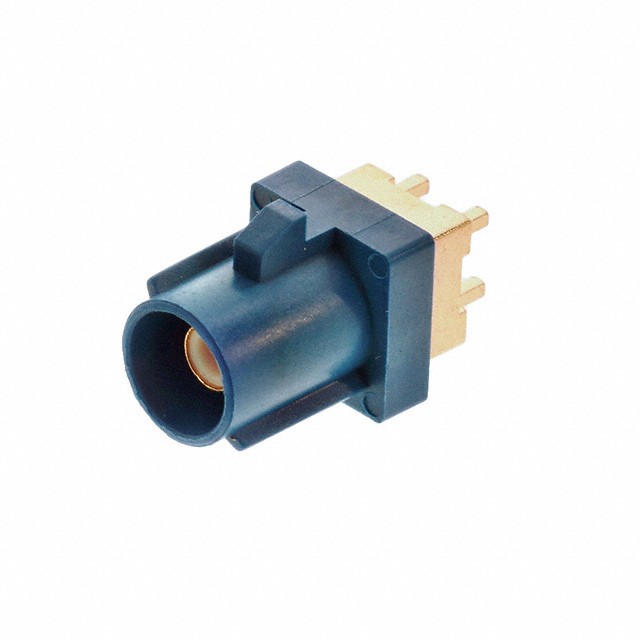

RF55-30C-T-00-50-G-SH

Active

Adam Tech

FAKRA PLUG SMB TYPE: VERTICAL, S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

RF55-30C-T-00-50-G-SH

Active

Adam Tech

FAKRA PLUG SMB TYPE: VERTICAL, S

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RF55-30C-T-00-50-G-SH

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code C
Frequency - Max [Max]	4 GHz
Housing Color	Blue
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

RF55-30 Series

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Frequency - Max [Max]	Features	Contact Termination	Dielectric Material	Center Contact Material	Connector Style	Mounting Type	Shield Termination	Fastening Type	Housing Color	Number of Ports	Body Material	Center Contact Plating	Impedance
Adam Tech RF55-30G-T-00-50-G-SH	Male Pin Plug	85 °C	-40 °C	Gold	4 GHz	Code G	Solder	Polytetrafluoroethylene (PTFE)	Brass	Fakra SMB	Through Hole	Solder	Locking Ramp	Gray	1	Brass	Gold	50 Ohms
Adam Tech RF55-30F-T-00-50-G-SH	Male Pin Plug	85 °C	-40 °C	Gold	4 GHz	Code F	Solder	Polytetrafluoroethylene (PTFE)	Brass	Fakra SMB	Through Hole	Solder	Locking Ramp	Brown	1	Brass	Gold	50 Ohms
Adam Tech RF55-30A-T-00-50-G-SH	Male Pin Plug	85 °C	-40 °C	Gold	4 GHz	Code A	Solder	Polytetrafluoroethylene (PTFE)	Brass	Fakra SMB	Through Hole	Solder	Locking Ramp	Black	1	Brass	Gold	50 Ohms
Adam Tech RF55-30D-T-00-50-G-SH	Male Pin Plug	85 °C	-40 °C	Gold	4 GHz	Code D	Solder	Polytetrafluoroethylene (PTFE)	Brass	Fakra SMB	Through Hole	Solder	Locking Ramp	Bordeaux Violet	1	Brass	Gold	50 Ohms
Adam Tech RF55-30E-T-00-50-G-SH	Male Pin Plug	85 °C	-40 °C	Gold	4 GHz	Code E	Solder	Polytetrafluoroethylene (PTFE)	Brass	Fakra SMB	Through Hole	Solder	Locking Ramp	Green	1	Brass	Gold	50 Ohms
Adam Tech RF55-30M-T-00-50-G-SH	Male Pin Plug	85 °C	-40 °C	Gold	4 GHz	Code M	Solder	Polytetrafluoroethylene (PTFE)	Brass	Fakra SMB	Through Hole	Solder	Locking Ramp	Orange Pastel	1	Brass	Gold	50 Ohms
Adam Tech RF55-30C-T-00-50-G-SH	Male Pin Plug	85 °C	-40 °C	Gold	4 GHz	Code C	Solder	Polytetrafluoroethylene (PTFE)	Brass	Fakra SMB	Through Hole	Solder	Locking Ramp	Blue	1	Brass	Gold	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.01
		10	$ 2.30
		25	$ 2.07
		40	$ 1.97
		80	$ 1.82
		230	$ 1.73
