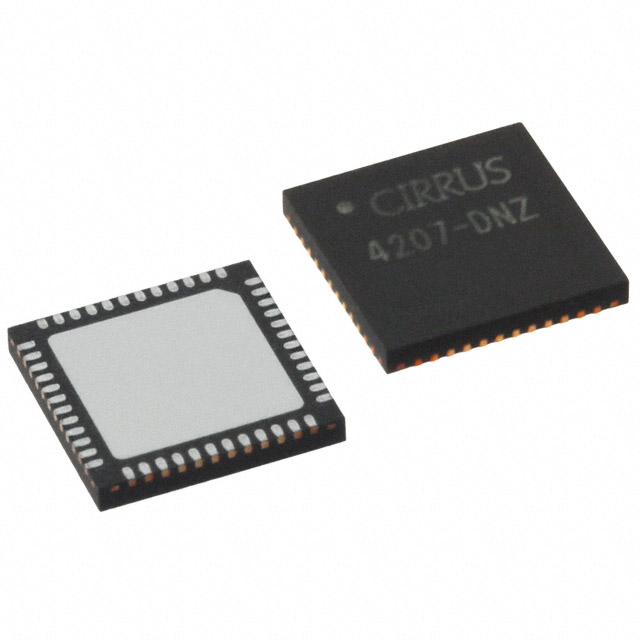

CS4207-DNZ
Cirrus Logic Inc.
IC CODEC AUD HDPN AMP AUTO 48QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS4207-DNZ
Cirrus Logic Inc.
IC CODEC AUD HDPN AMP AUTO 48QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS4207-DNZ |
|---|---|
| Data Interface | Serial |
| Dynamic Range, ADCs / DACs (db) Typ | 105 db, 110 db |
| Mounting Type | Surface Mount |
| Number of ADCs / DACs [custom] | 3 |
| Number of ADCs / DACs [custom] | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 48-QFN |
| Resolution (Bits) | 24 b |
| Sigma Delta | True |
| Supplier Device Package | 48-QFN-EP (6x6) |
| Type | HD, Audio |
| Voltage - Supply, Analog [Max] | 5.25 V |
| Voltage - Supply, Analog [Min] | 2.97 V |
| Voltage - Supply, Digital [Max] | 5.25 V |
| Voltage - Supply, Digital [Min] | 2.97 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 490 | $ 8.61 | |
Description
General part information
CS4207 Series
Audio, HD Interface 24 b Serial 48-QFN-EP (6x6)
