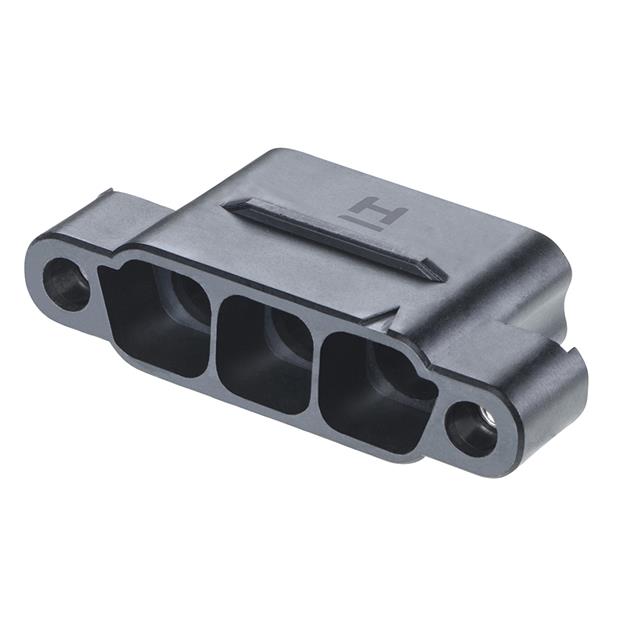

KA1-3010398M3

Active

Harwin Inc.

RECT PWR HOUSING, PLUG, 3POS, CABLE/PNL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKA1-1410005 KA1-0400005 +2

KA1-3010398M3

Active

Harwin Inc.

RECT PWR HOUSING, PLUG, 3POS, CABLE/PNL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsKA1-1410005 KA1-0400005 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KA1-3010398M3

Color	Black
Connector Type	Plug
Contact Termination	Solder
Contact Type	Male Pin, Power
Features	Mating Flange
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type	Free Hanging (In-Line), Panel Mount
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.335 in
Pitch [x]	8.5 mm

KA1-301 Series

Part	Connector Type	Number of Rows	Color	Mounting Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Material	Note	Contact Termination	Pitch [x]	Pitch [x]	Number of Positions
Harwin Inc. KA1-3010398M5	Plug	1	Black	Free Hanging (In-Line)	Jackscrews	-65 ░C	150 °C	Male Pin Power	Polyphenylene Sulfide (PPS) Glass Filled	Contacts Not Included	Solder	0.335 in	8.5 mm
Harwin Inc. KA1-3010298M3	Plug	1	Black	Free Hanging (In-Line) Panel Mount	Mating Flange	-65 ░C	150 °C	Male Pin Power	Polyphenylene Sulfide (PPS) Glass Filled	Contacts Not Included	Solder	0.335 in	8.5 mm	2
Harwin Inc. KA1-3010298M1	Plug	1	Black		Mounting Flange	-65 ░C	150 °C	Male Pin Power	Polyphenylene Sulfide (PPS) Glass Filled	Contacts Not Included	Solder	0.335 in	8.5 mm	2
Harwin Inc. KA1-3010298M5	Plug	1	Black	Free Hanging (In-Line)	Jackscrews	-65 ░C	150 °C	Male Pin Power	Polyphenylene Sulfide (PPS) Glass Filled	Contacts Not Included	Solder	0.335 in	8.5 mm	2
Harwin Inc. KA1-3010398M3	Plug	1	Black	Free Hanging (In-Line) Panel Mount	Mating Flange	-65 ░C	150 °C	Male Pin Power	Polyphenylene Sulfide (PPS) Glass Filled	Contacts Not Included	Solder	0.335 in	8.5 mm
Harwin Inc. KA1-3010498M3	Plug	1	Black	Free Hanging (In-Line) Panel Mount	Mating Flange	-65 ░C	150 °C	Male Pin Power	Polyphenylene Sulfide (PPS) Glass Filled	Contacts Not Included	Solder	0.335 in	8.5 mm	4
Harwin Inc. KA1-3010398M1	Plug	1	Black		Mounting Flange	-65 ░C	150 °C	Male Pin Power	Polyphenylene Sulfide (PPS) Glass Filled	Contacts Not Included	Solder	0.335 in	8.5 mm
Harwin Inc. KA1-3010498M5	Plug	1	Black	Free Hanging (In-Line)	Jackscrews	-65 ░C	150 °C	Male Pin Power	Polyphenylene Sulfide (PPS) Glass Filled	Contacts Not Included	Solder	0.335 in	8.5 mm	4
Harwin Inc. KA1-3010498M1	Plug	1	Black		Mounting Flange	-65 ░C	150 °C	Male Pin Power	Polyphenylene Sulfide (PPS) Glass Filled	Contacts Not Included	Solder	0.335 in	8.5 mm	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 15.75
		10	$ 13.39
		25	$ 12.55
		50	$ 11.95
		100	$ 11.38
		250	$ 10.67
		500	$ 10.16
		1000	$ 9.68
Newark	Each (Supplied on Cut Tape)	1	$ 15.75
		10	$ 12.84
		25	$ 11.84
		50	$ 11.13
		100	$ 10.47
		250	$ 9.65

Description

General part information

KA1-301 Series

3 Rectangular Connectors - Housings Plug Black 0.335" (8.50mm)

Documents

Technical documentation and resources

KA1-1410005

KA1-0400005

KA1 Series Datasheet

Datasheet
