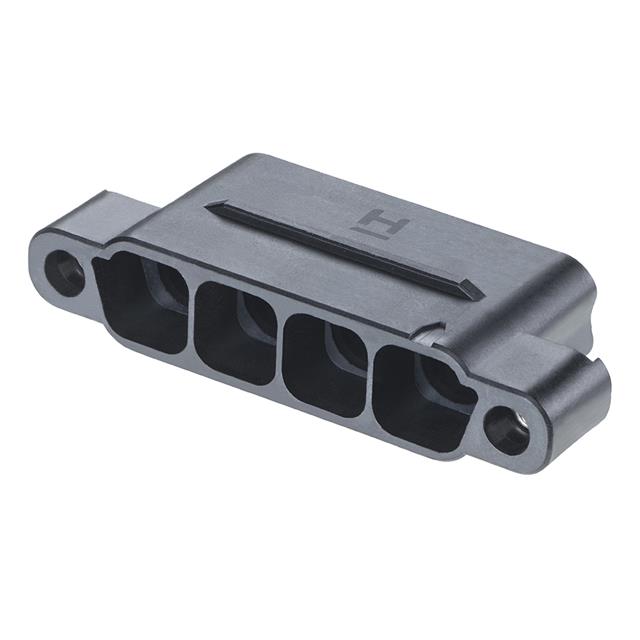

KA1-3010498M3
ActiveHarwin Inc.
RECT PWR HOUSING, PLUG, 4POS, CABLE/PNL ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
KA1-3010498M3
ActiveHarwin Inc.
RECT PWR HOUSING, PLUG, 4POS, CABLE/PNL ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KA1-3010498M3 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Solder |
| Contact Type | Male Pin, Power |
| Features | Mating Flange |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mounting Type | Free Hanging (In-Line), Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.335 in |
| Pitch [x] | 8.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
KA1-301 Series
4 Rectangular Connectors - Housings Plug Black 0.335" (8.50mm)
