CR301-50AE
ActiveOhmite

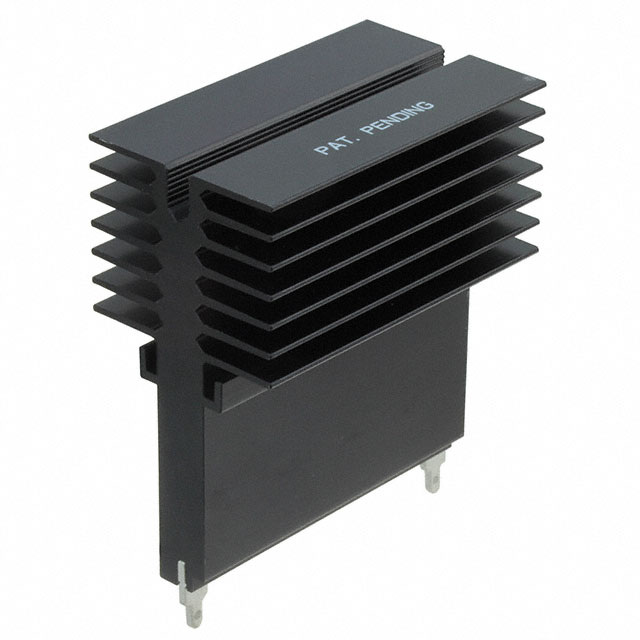

HEATSINK: EXTRUDED; GRILLED; TO247,TO264; BLACK; L: 50MM; W: 30MM
Deep-Dive with AI
Search across all available documentation for this part.
CR301-50AE
ActiveOhmite
HEATSINK: EXTRUDED; GRILLED; TO247,TO264; BLACK; L: 50MM; W: 30MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CR301-50AE |
|---|---|
| Attachment Method | 2 Clips and PC Pin |
| Length [x] | 1.969 in |
| Length [x] | 50 mm |
| Material | Aluminum Alloy |
| Material Finish | Black Anodized |
| Package Cooled | TO-301 |
| Shape | Rectangular, Fins |
| Thermal Resistance @ Natural | 5.7 °C/W |
| Type | Board Level, Vertical |
| Width [x] | 60 mm |
| Width [x] | 2.362 in |
cr Series
| Part | Material | Attachment Method | Shape | Width [x] | Width [x] | Type | Length [x] | Length [x] | Thermal Resistance @ Natural | Package Cooled | Material Finish | Fin Height [z] | Fin Height [z] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ohmite | Aluminum Alloy | 3 Clips and PC Pin | Rectangular Fins | 2.953 in | 75 mm | Board Level Vertical | 1.969 in | 50 mm | 3.3 °C/W | TO-201 | Black Anodized | ||||
Ohmite | Aluminum Alloy | 2 Clips and PC Pin | Rectangular Fins | 2.362 in | 60 mm | Board Level Vertical | 4.5 °C/W | TO-247 TO-264 TO-301 | Black Anodized | 59.94 mm | 2.36 in | 2.953 in | 75 mm | ||
Ohmite | Aluminum Alloy | 3 Clips and PC Pin | Rectangular Fins | 2.953 in | 75 mm | Board Level Vertical | 1.969 in | 50 mm | 3.3 °C/W | TO-201 | Degreased | ||||
Ohmite | Aluminum Alloy | 2 Clips and PC Pin | Rectangular Fins | 2.362 in | 60 mm | Board Level Vertical | 1.969 in | 50 mm | 5.7 °C/W | TO-301 | Black Anodized | ||||
Ohmite | Aluminum Alloy | 3 Clips and PC Pin | Rectangular Fins | 2.953 in | 75 mm | Board Level Vertical | 4.7 °C/W | TO-201 | Degreased | 0.984 in | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
cr Series
Heat Sink TO-301 Aluminum Alloy Board Level, Vertical
