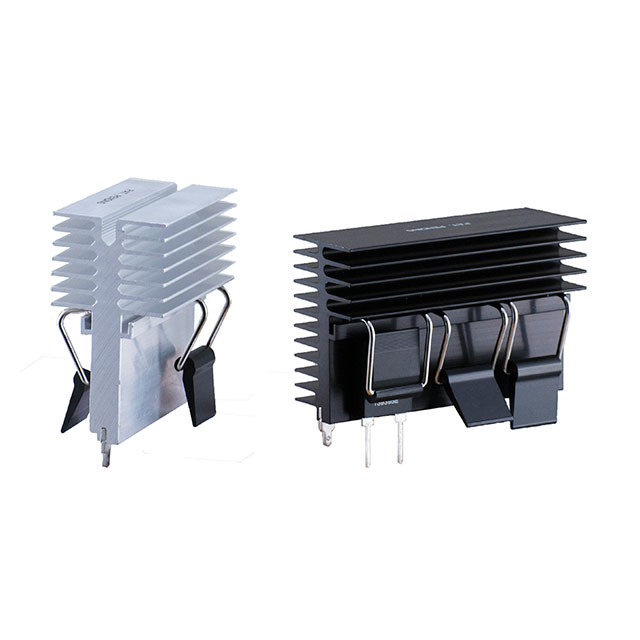

CR201-50VE

Active

Ohmite

HEATSINK: EXTRUDED; GRILLED; TO247,TO264; NATURAL; L: 50MM; W: 34MM

Search across all available documentation for this part.

Active

Ohmite

HEATSINK: EXTRUDED; GRILLED; TO247,TO264; NATURAL; L: 50MM; W: 34MM

Technical Specifications

Parameters and characteristics for this part

Part	Material	Attachment Method	Shape	Width [x]	Width [x]	Type	Length [x]	Length [x]	Thermal Resistance @ Natural	Package Cooled	Material Finish	Fin Height [z]	Fin Height [z]	Length	Length
Ohmite CR201-50AE	Aluminum Alloy	3 Clips and PC Pin	Rectangular Fins	2.953 in	75 mm	Board Level Vertical	1.969 in	50 mm	3.3 °C/W	TO-201	Black Anodized
Ohmite CR301-75AE	Aluminum Alloy	2 Clips and PC Pin	Rectangular Fins	2.362 in	60 mm	Board Level Vertical			4.5 °C/W	TO-247 TO-264 TO-301	Black Anodized	59.94 mm	2.36 in	2.953 in	75 mm
Ohmite CR201-50VE	Aluminum Alloy	3 Clips and PC Pin	Rectangular Fins	2.953 in	75 mm	Board Level Vertical	1.969 in	50 mm	3.3 °C/W	TO-201	Degreased
Ohmite CR301-50AE	Aluminum Alloy	2 Clips and PC Pin	Rectangular Fins	2.362 in	60 mm	Board Level Vertical	1.969 in	50 mm	5.7 °C/W	TO-301	Black Anodized
Ohmite CR201-25VE	Aluminum Alloy	3 Clips and PC Pin	Rectangular Fins	2.953 in	75 mm	Board Level Vertical			4.7 °C/W	TO-201	Degreased			0.984 in	25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-201 Aluminum Alloy Board Level, Vertical

Technical documentation and resources

No documents available
