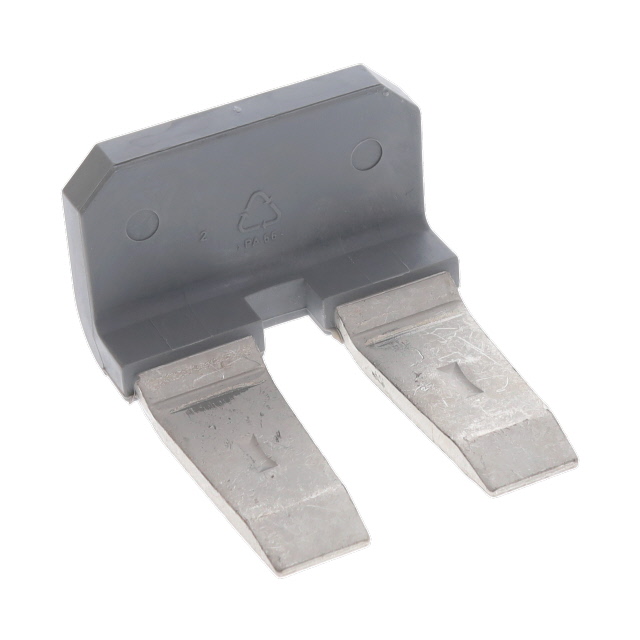

285-495

Active

WAGO Corporation

JUMPER (BUSBAR), JUMPER, RAIL MOUNTED TERMINAL BLOCKS, 2 POSITIONS

Search across all available documentation for this part.

Active

WAGO Corporation

JUMPER (BUSBAR), JUMPER, RAIL MOUNTED TERMINAL BLOCKS, 2 POSITIONS

Technical Specifications

Parameters and characteristics for this part

Specification	285-495

Color	Gray
For Use With/Related Products	Terminal Blocks
Number of Positions	2
Style	Flat Pins - Angled
Type	Terminal Block, Cross Connection

Part	Color	Type	Number of Positions	Style	For Use With/Related Products	Material - Insulation	Termination Style	Current - IEC	Terminal - Width [y]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Stripping Length	Voltage - IEC	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Number of Levels	Wire Gauge or Range - AWG [Min]
WAGO Corporation 285-435	Gray	Terminal Block Cross Connection	4	Flat Pins	Terminal Blocks
WAGO Corporation 285-407	Gray	Pick Off Terminal Block	2
WAGO Corporation 285-135	Gray	Feed Through	2			Polyamide (PA66) Nylon 6/6	Push In Spring	125 A	16 mm	10 AWG	2 AWG	25 mm	1 kV	35 mm²	6 mm²	1
WAGO Corporation 285-137	Green Yellow	Ground Earth	2			Polyamide (PA66) Nylon 6/6	Push In Spring		16 mm	10 AWG	2 AWG	25 mm		35 mm²	6 mm²	1
WAGO Corporation 285-150	Gray	Feed Through	2			Polyamide (PA66) Nylon 6/6	Push In Spring	150 A	20 mm	8 AWG		30 mm	1 kV	50 mm²	10 mm²	1	1/0
WAGO Corporation 285-495	Gray	Terminal Block Cross Connection	2	Flat Pins - Angled	Terminal Blocks
WAGO Corporation 285-195	Gray	Feed Through	2			Polyamide (PA66) Nylon 6/6	Push In Spring	232 A	25 mm	4 AWG	4 aught AWG	35 mm	1500 V	95 mm²	25 mm²	1
WAGO Corporation 285-635	Gray	Feed Through	2			Polyamide (PA66) Nylon 6/6	Push In Spring	125 A	16 mm	8 AWG	2 AWG	23 mm	1 kV	35 mm²	6 mm²	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Terminal Block, Cross Connection Jumper Flat Pins - Angled
