285-195

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 4 AWG, 0000 AWG, 95 MM², CLAMP, 232 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

285-195

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 4 AWG, 0000 AWG, 95 MM², CLAMP, 232 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	285-195

Color	Gray
Current - IEC	232 A
Material - Insulation	Polyamide (PA66), Nylon 6/6
Number of Levels	1
Number of Positions	2
Stripping Length	35 mm
Terminal - Width [y]	25 mm
Termination Style	Push In, Spring
Type	Feed Through
Voltage - IEC	1500 V
Wire Gauge or Range - AWG [Max]	4 AWG
Wire Gauge or Range - AWG [Min]	4 aught AWG
Wire Gauge or Range - mm² [Max]	95 mm²
Wire Gauge or Range - mm² [Min]	25 mm²

285 Series

Part	Color	Type	Number of Positions	Style	For Use With/Related Products	Material - Insulation	Termination Style	Current - IEC	Terminal - Width [y]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Stripping Length	Voltage - IEC	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Number of Levels	Wire Gauge or Range - AWG [Min]
WAGO Corporation 285-435	Gray	Terminal Block Cross Connection	4	Flat Pins	Terminal Blocks
WAGO Corporation 285-407	Gray	Pick Off Terminal Block	2
WAGO Corporation 285-135	Gray	Feed Through	2			Polyamide (PA66) Nylon 6/6	Push In Spring	125 A	16 mm	10 AWG	2 AWG	25 mm	1 kV	35 mm²	6 mm²	1
WAGO Corporation 285-137	Green Yellow	Ground Earth	2			Polyamide (PA66) Nylon 6/6	Push In Spring		16 mm	10 AWG	2 AWG	25 mm		35 mm²	6 mm²	1
WAGO Corporation 285-150	Gray	Feed Through	2			Polyamide (PA66) Nylon 6/6	Push In Spring	150 A	20 mm	8 AWG		30 mm	1 kV	50 mm²	10 mm²	1	1/0
WAGO Corporation 285-495	Gray	Terminal Block Cross Connection	2	Flat Pins - Angled	Terminal Blocks
WAGO Corporation 285-195	Gray	Feed Through	2			Polyamide (PA66) Nylon 6/6	Push In Spring	232 A	25 mm	4 AWG	4 aught AWG	35 mm	1500 V	95 mm²	25 mm²	1
WAGO Corporation 285-635	Gray	Feed Through	2			Polyamide (PA66) Nylon 6/6	Push In Spring	125 A	16 mm	8 AWG	2 AWG	23 mm	1 kV	35 mm²	6 mm²	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.52
		10	$ 30.25
		25	$ 29.20
		50	$ 28.15
		100	$ 27.31
		250	$ 26.79
Newark	Each	1	$ 48.64
		25	$ 46.07
		100	$ 43.28
		250	$ 40.71
		500	$ 38.14

Description

General part information

285 Series

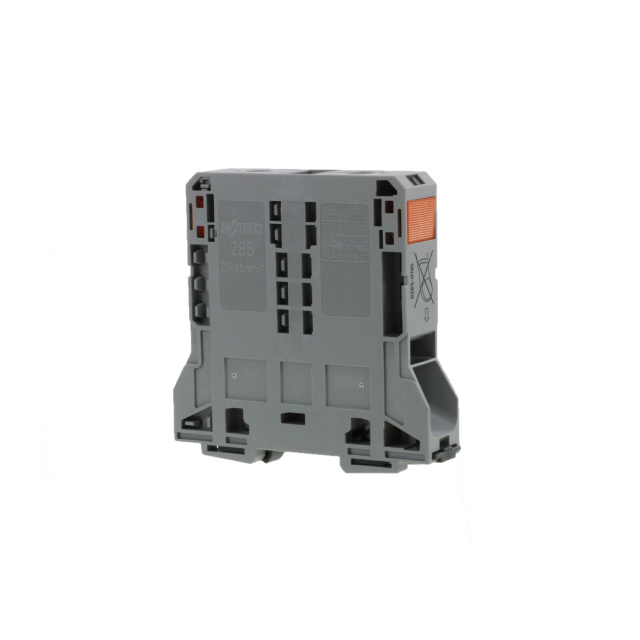

The 285-195 is a 2-position gray DIN 35 x 15 rail-mount through Terminal Block with POWER CAGE CLAMP® connection technology. It is made with the polyamide 66 (PA 66) insulator. It features horizontal design and side marking.
