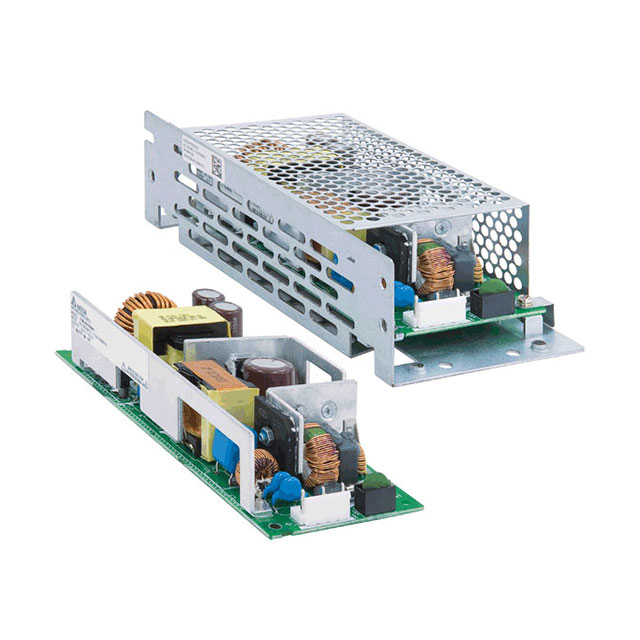

PJB-24V100WLNA

Active

Delta Electronics

AC/DC CONVERTER 24V 100W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPJB-24V100W CB Test Certificate Datasheet +2

PJB-24V100WLNA

Active

Delta Electronics

AC/DC CONVERTER 24V 100W

Deep-Dive with AI

DocumentsPJB-24V100W CB Test Certificate Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PJB-24V100WLNA

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	4.3 A
Efficiency	89 %
Features	PFC, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	100 W
Size / Dimension [x]	7.28 in
Size / Dimension [x]	185 mm
Size / Dimension [y]	2.83 in
Size / Dimension [y]	72 mm
Size / Dimension [z]	1.77 in
Size / Dimension [z]	45 mm
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

PJB-24 Series

Part	Number of Outputs	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Voltage - Output 1	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Mounting Type	Power (Watts)	Features	Voltage - Isolation	Approval Agency
Delta Electronics PJB-24V150WLNA	1	ITE (Commercial)	3.35 in	1.85 in	188 mm	47 mm	85 mm	7.4 "	Open Frame	24 V	6.3 A	-10 °C	70 °C	90.5 %	Chassis Mount	150 W	Adjustable Output PFC Universal Input	3000 V	CB CE cURus TUV
Delta Electronics PJB-24V100WBNA	1	ITE (Commercial)	2.83 in	1.77 in	185 mm	45 mm	72 mm	7.28 in	Conformal Coated Open Frame	24 V	4.3 A	-10 °C	70 °C	89 %	Chassis Mount	100 W	Adjustable Output PFC Universal Input	3000 V	CB CE cURus TUV
Delta Electronics PJB-24V150WCNA	1	ITE (Commercial)	3.35 in	1.85 in	188 mm	47 mm	85 mm	7.4 "	Conformal Coated Enclosed	24 V	6.3 A	-10 °C	70 °C	90.5 %	Chassis Mount	150 W	Adjustable Output PFC Universal Input	3000 V	CB CE cURus TUV
Delta Electronics PJB-24V100WBRA	1	ITE (Commercial)	2.44 "	1.3 "	155 mm	33 mm	62 mm	6.1 in	Open Frame	24 V	4.3 A	-10 °C	70 °C	89 %	Chassis Mount	100 W	Adjustable Output PFC Remote On/Off Universal Input	3000 V	CB CE cURus TUV
Delta Electronics PJB-24V100WCNA	1	ITE (Commercial)	2.83 in	1.77 in	185 mm	45 mm	72 mm	7.28 in	Conformal Coated Enclosed	24 V	4.3 A	-10 °C	70 °C	89 %	Chassis Mount	100 W	Adjustable Output PFC Universal Input	3000 V	CB CE cURus TUV
Delta Electronics PJB-24V100WLNA	1	ITE (Commercial)	2.83 in	1.77 in	185 mm	45 mm	72 mm	7.28 in	Open Frame	24 V	4.3 A	-10 °C	70 °C	89 %	Chassis Mount	100 W	Adjustable Output PFC Universal Input	3000 V	CB CE cURus TUV
Delta Electronics PJB-24V100WLRA	1	ITE (Commercial)	2.83 in	1.77 in	185 mm	45 mm	72 mm	7.28 in	Open Frame	24 V	4.3 A	-10 °C	70 °C	89 %	Chassis Mount	100 W	Adjustable Output PFC Remote On/Off Universal Input	3000 V	CB CE cURus TUV
Delta Electronics PJB-24V150WCRA	1	ITE (Commercial)	3.35 in	1.85 in	188 mm	47 mm	85 mm	7.4 "	Enclosed	24 V	6.3 A	-10 °C	70 °C	90.5 %	Chassis Mount	150 W		3000 V	CB CE cURus TUV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 51.46

PJB-24V100WLNA

Deep-Dive with AI

PJB-24V100WLNA

Deep-Dive with AI

Technical Specifications

PJB-24 Series

Pricing

Description

PJB-24 Series

Documents

PJB-24V100W CB Test Certificate

Datasheet

Power Supplies Catalog, Standard

PJB-24V100W TUV Cert

PJB-24 Series
