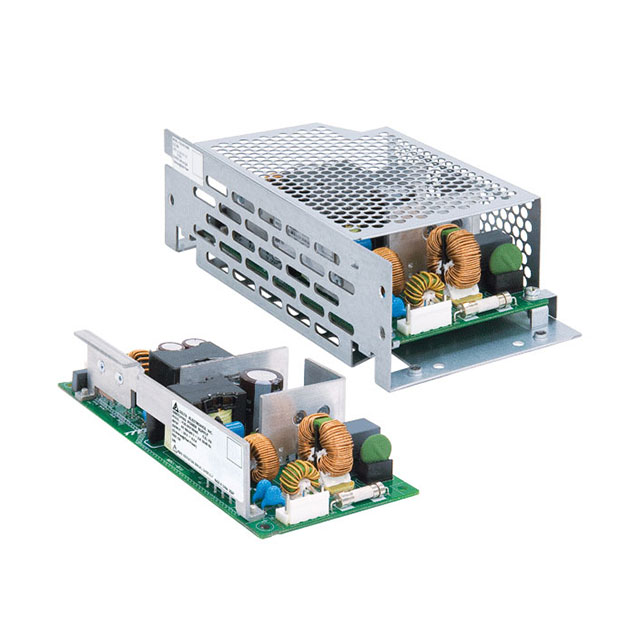

PJB-24V150WLNA
ActiveDelta Electronics
AC/DC CONVERTER 24V 150W
Deep-Dive with AI
Search across all available documentation for this part.
PJB-24V150WLNA
ActiveDelta Electronics
AC/DC CONVERTER 24V 150W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PJB-24V150WLNA |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 6.3 A |
| Efficiency | 90.5 % |
| Features | PFC, Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 150 W |
| Size / Dimension [x] | 188 mm |
| Size / Dimension [x] | 7.4 " |
| Size / Dimension [y] | 3.35 in |
| Size / Dimension [y] | 85 mm |
| Size / Dimension [z] | 1.85 in |
| Size / Dimension [z] | 47 mm |
| Type | Open Frame |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
PJB-24 Series
| Part | Number of Outputs | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Type | Voltage - Output 1 | Current - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Mounting Type | Power (Watts) | Features | Voltage - Isolation | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 1 | ITE (Commercial) | 3.35 in | 1.85 in | 188 mm | 47 mm | 85 mm | 7.4 " | Open Frame | 24 V | 6.3 A | -10 °C | 70 °C | 90.5 % | Chassis Mount | 150 W | Adjustable Output PFC Universal Input | 3000 V | CB CE cURus TUV |
Delta Electronics | 1 | ITE (Commercial) | 2.83 in | 1.77 in | 185 mm | 45 mm | 72 mm | 7.28 in | Conformal Coated Open Frame | 24 V | 4.3 A | -10 °C | 70 °C | 89 % | Chassis Mount | 100 W | Adjustable Output PFC Universal Input | 3000 V | CB CE cURus TUV |
Delta Electronics | 1 | ITE (Commercial) | 3.35 in | 1.85 in | 188 mm | 47 mm | 85 mm | 7.4 " | Conformal Coated Enclosed | 24 V | 6.3 A | -10 °C | 70 °C | 90.5 % | Chassis Mount | 150 W | Adjustable Output PFC Universal Input | 3000 V | CB CE cURus TUV |
Delta Electronics | 1 | ITE (Commercial) | 2.44 " | 1.3 " | 155 mm | 33 mm | 62 mm | 6.1 in | Open Frame | 24 V | 4.3 A | -10 °C | 70 °C | 89 % | Chassis Mount | 100 W | Adjustable Output PFC Remote On/Off Universal Input | 3000 V | CB CE cURus TUV |
Delta Electronics | 1 | ITE (Commercial) | 2.83 in | 1.77 in | 185 mm | 45 mm | 72 mm | 7.28 in | Conformal Coated Enclosed | 24 V | 4.3 A | -10 °C | 70 °C | 89 % | Chassis Mount | 100 W | Adjustable Output PFC Universal Input | 3000 V | CB CE cURus TUV |
Delta Electronics | 1 | ITE (Commercial) | 2.83 in | 1.77 in | 185 mm | 45 mm | 72 mm | 7.28 in | Open Frame | 24 V | 4.3 A | -10 °C | 70 °C | 89 % | Chassis Mount | 100 W | Adjustable Output PFC Universal Input | 3000 V | CB CE cURus TUV |
Delta Electronics | 1 | ITE (Commercial) | 2.83 in | 1.77 in | 185 mm | 45 mm | 72 mm | 7.28 in | Open Frame | 24 V | 4.3 A | -10 °C | 70 °C | 89 % | Chassis Mount | 100 W | Adjustable Output PFC Remote On/Off Universal Input | 3000 V | CB CE cURus TUV |
Delta Electronics | 1 | ITE (Commercial) | 3.35 in | 1.85 in | 188 mm | 47 mm | 85 mm | 7.4 " | Enclosed | 24 V | 6.3 A | -10 °C | 70 °C | 90.5 % | Chassis Mount | 150 W | 3000 V | CB CE cURus TUV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 504 | $ 54.35 | |
Description
General part information
PJB-24 Series
Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
