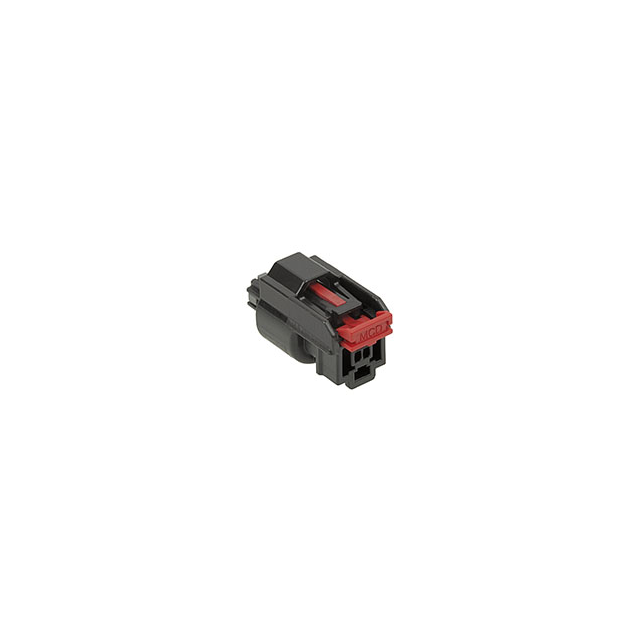

0349672004

Active

Molex

CONN RCPT HSG 2POS 1.80MM

Deep-Dive with AI

Search across all available documentation for this part.

0349672004

Active

Molex

CONN RCPT HSG 2POS 1.80MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0349672004

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Connector Position Assurance (CPA), Sealed
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Pitch [x]	0.071 in
Pitch [x]	1.8 mm

034967 Series

Part	Contact Termination	Pitch [x]	Pitch [x]	Color	Features	Note	Mounting Type	Connector Type	Contact Type	Number of Positions	Insulation Material	Number of Rows	Fastening Type	Accessory Type	For Use With/Related Products	Operating Temperature	Operating Temperature [Max]	Operating Temperature [Min]
Molex 0349671004	Crimp	0.071 in	1.8 mm	Gray	Connector Position Assurance (CPA) Sealed	Contacts Not Included	Free Hanging (In-Line)	Receptacle	Female Socket	10	Glass Filled Nylon Polyamide (PA)	1	Latch Lock
Molex 0349670002										1				Polarizing Device (Key Plug Post)	CTX50 Series
Molex 0349674005	Crimp	0.071 in	1.8 mm	Black	Sealed	Contacts Not Included	Free Hanging (In-Line)	Receptacle	Female Socket	4	Glass Filled Nylon Polyamide (PA)	1	Latch Lock
Molex 0349672011	Crimp	0.071 in	1.8 mm		Connector Position Assurance (CPA) Sealed		Free Hanging (In-Line)	Receptacle	Female Socket	2		1	Latch Lock			-40 °C
Molex 0349674025	Crimp	0.071 in	1.8 mm	Black	Sealed	Contacts Not Included	Free Hanging (In-Line)	Receptacle	Female Socket	4	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	1	Latch Lock				125 °C	-40 °C
Molex 0349671001	Crimp	0.071 in	1.8 mm	Black	Connector Position Assurance (CPA) Sealed	Contacts Not Included	Free Hanging (In-Line)	Receptacle	Female Socket	10	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	1	Latch Lock				125 °C	-40 °C
Molex 0349671010
Molex 0349674007	Crimp	0.071 in	1.8 mm	Gray	Connector Position Assurance (CPA) Sealed	Contacts Not Included	Free Hanging (In-Line)	Receptacle	Female Socket	4	Glass Filled Nylon Polyamide (PA)	1	Latch Lock
Molex 0349672004	Crimp	0.071 in	1.8 mm	Gray	Connector Position Assurance (CPA) Sealed	Contacts Not Included	Free Hanging (In-Line)	Receptacle	Female Socket	2	Polyamide (PA66) Nylon 6/6 Glass Filled	1	Latch Lock
Molex 0349674006	Crimp	0.071 in	1.8 mm	Gray	Connector Position Assurance (CPA) Sealed	Contacts Not Included	Free Hanging (In-Line)	Receptacle	Female Socket	4	Glass Filled Nylon Polyamide (PA)	1	Latch Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.11
		10	$ 0.94
		100	$ 0.78
		1500	$ 0.72

Description

General part information

034967 Series

2 Rectangular Connectors - Housings Receptacle Gray 0.071" (1.80mm)

Documents

Technical documentation and resources

No documents available
