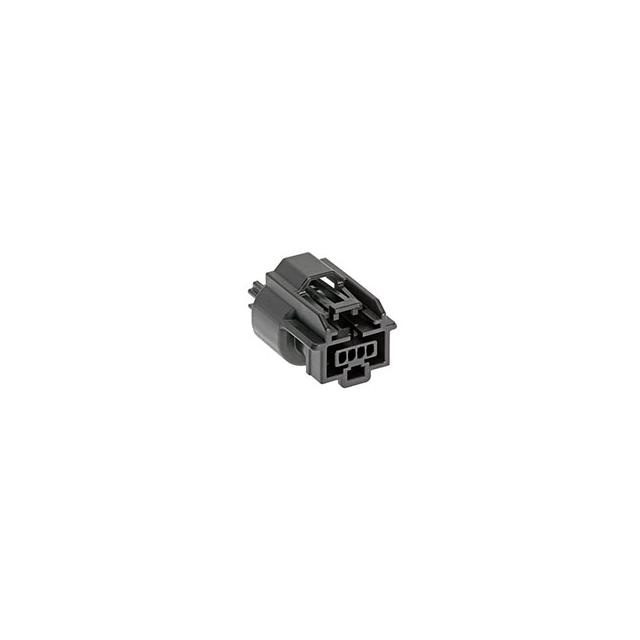

0349674005
ActiveMolex
CONN RCPT HSG 4POS 1.80MM
Deep-Dive with AI
Search across all available documentation for this part.
0349674005
ActiveMolex
CONN RCPT HSG 4POS 1.80MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0349674005 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Sealed |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Pitch [x] | 0.071 in |
| Pitch [x] | 1.8 mm |
034967 Series
| Part | Contact Termination | Pitch [x] | Pitch [x] | Color | Features | Note | Mounting Type | Connector Type | Contact Type | Number of Positions | Insulation Material | Number of Rows | Fastening Type | Accessory Type | For Use With/Related Products | Operating Temperature | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Crimp | 0.071 in | 1.8 mm | Gray | Connector Position Assurance (CPA) Sealed | Contacts Not Included | Free Hanging (In-Line) | Receptacle | Female Socket | 10 | Glass Filled Nylon Polyamide (PA) | 1 | Latch Lock | |||||
Molex | 1 | Polarizing Device (Key Plug Post) | CTX50 Series | |||||||||||||||
Molex | Crimp | 0.071 in | 1.8 mm | Black | Sealed | Contacts Not Included | Free Hanging (In-Line) | Receptacle | Female Socket | 4 | Glass Filled Nylon Polyamide (PA) | 1 | Latch Lock | |||||
Molex | Crimp | 0.071 in | 1.8 mm | Connector Position Assurance (CPA) Sealed | Free Hanging (In-Line) | Receptacle | Female Socket | 2 | 1 | Latch Lock | -40 °C | |||||||
Molex | Crimp | 0.071 in | 1.8 mm | Black | Sealed | Contacts Not Included | Free Hanging (In-Line) | Receptacle | Female Socket | 4 | Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS) | 1 | Latch Lock | 125 °C | -40 °C | |||
Molex | Crimp | 0.071 in | 1.8 mm | Black | Connector Position Assurance (CPA) Sealed | Contacts Not Included | Free Hanging (In-Line) | Receptacle | Female Socket | 10 | Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS) | 1 | Latch Lock | 125 °C | -40 °C | |||
Molex | ||||||||||||||||||
Molex | Crimp | 0.071 in | 1.8 mm | Gray | Connector Position Assurance (CPA) Sealed | Contacts Not Included | Free Hanging (In-Line) | Receptacle | Female Socket | 4 | Glass Filled Nylon Polyamide (PA) | 1 | Latch Lock | |||||
Molex | Crimp | 0.071 in | 1.8 mm | Gray | Connector Position Assurance (CPA) Sealed | Contacts Not Included | Free Hanging (In-Line) | Receptacle | Female Socket | 2 | Polyamide (PA66) Nylon 6/6 Glass Filled | 1 | Latch Lock | |||||
Molex | Crimp | 0.071 in | 1.8 mm | Gray | Connector Position Assurance (CPA) Sealed | Contacts Not Included | Free Hanging (In-Line) | Receptacle | Female Socket | 4 | Glass Filled Nylon Polyamide (PA) | 1 | Latch Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.27 | |
| 10 | $ 0.95 | |||
| 25 | $ 0.86 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.74 | |||
| 250 | $ 0.68 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.60 | |||
| 2500 | $ 0.59 | |||
Description
General part information
034967 Series
4 Rectangular Connectors - Housings Receptacle Black 0.071" (1.80mm)
