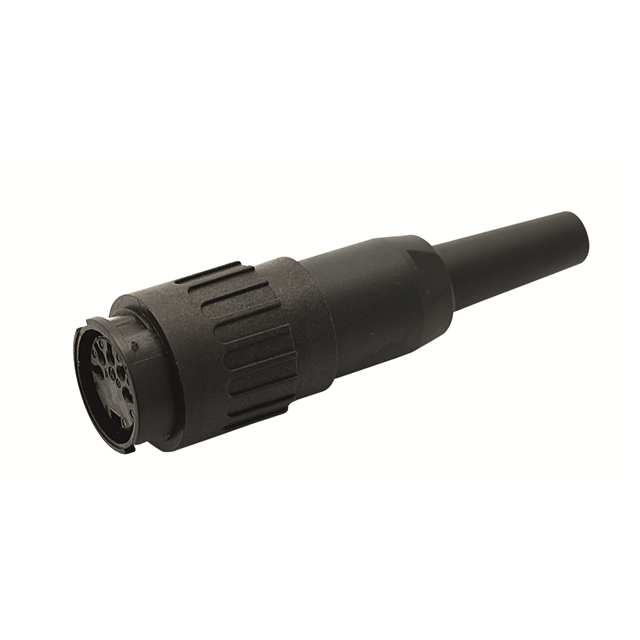

T 3438 518

Active

Amphenol Sine Systems Corp

FEMALE CABLE CONNECTOR WITH BLAC

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

FEMALE CABLE CONNECTOR WITH BLAC

Technical Specifications

Parameters and characteristics for this part

Specification	T 3438 518

Applications	Marine, Industrial, Medical, Instrumentation, Testing Equipment & Measurement
Cable Opening [diameter]	6 mm, 4 mm
Cable Opening [diameter]	0.236 in, 0.157 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Current Rating (Amps)	7 A
Fastening Type	Bayonet Lock
Features	Backshell, Strain Relief, Cable Clamp
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-7
Shielding	Unshielded
Voltage Rating	250 VDC

Part	Housing Color	Note	Contact Size	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Features	Shielding	Connector Type	Ingress Protection	Shell Size - Insert	Fastening Type	Number of Positions	Contact Shape	Orientation	Type	Contact Type	Mounting Type	Current Rating (Amps)	Shell Finish	Cable Opening [diameter]	Cable Opening [diameter]	Contact Finish - Mating	Applications	Color	Voltage Rating	Shell Material	Primary Material
Amphenol Sine Systems Corp T 3438 951	Black	Contacts Not Included	1 mm	Thermoplastic	100 °C	-40 °C	UL94 V-0	Backshell Cable Clamp Coupling Nut Strain Relief	Unshielded	Plug Housing	IP40	M16-7	Bayonet Lock	7	Circular	Keyed	For Female Sockets	Crimp	Free Hanging (In-Line)
Amphenol Sine Systems Corp T 3438 518				Thermoplastic	100 °C	-40 °C	UL94 V-0	Backshell Cable Clamp Strain Relief	Unshielded	Female Sockets Plug	IP40	M16-7	Bayonet Lock	7		Keyed			Free Hanging (In-Line)	7 A	Nickel	4 mm 6 mm	0.157 in 0.236 in	Gold	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Black	250 VDC	Zinc Die Cast	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.83

General part information

7 Position Circular Connector Plug, Female Sockets Solder Cup
