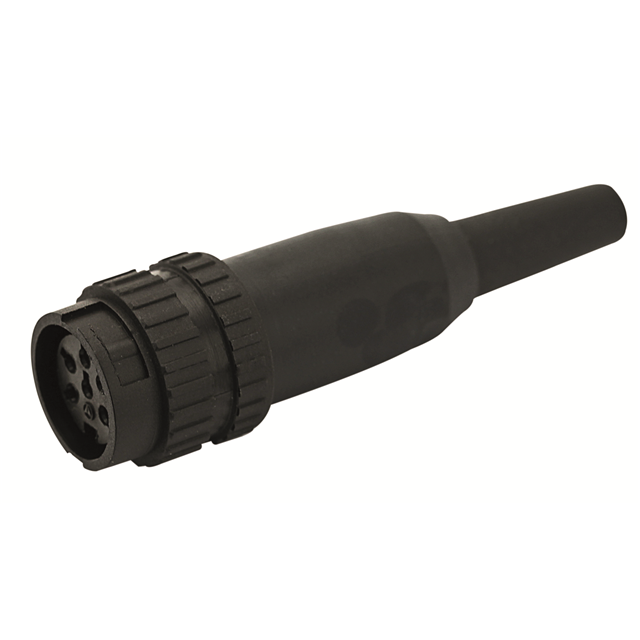

T 3438 951

Active

Amphenol Sine Systems Corp

FULL PLASTIC FEMALE CABLE CONNEC

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

FULL PLASTIC FEMALE CABLE CONNEC

Technical Specifications

Parameters and characteristics for this part

Specification	T 3438 951

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell, Cable Clamp, Strain Relief
Housing Color	Black
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Size - Insert	M16-7
Shielding	Unshielded
Type	For Female Sockets

Part	Housing Color	Note	Contact Size	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Features	Shielding	Connector Type	Ingress Protection	Shell Size - Insert	Fastening Type	Number of Positions	Contact Shape	Orientation	Type	Contact Type	Mounting Type	Current Rating (Amps)	Shell Finish	Cable Opening [diameter]	Cable Opening [diameter]	Contact Finish - Mating	Applications	Color	Voltage Rating	Shell Material	Primary Material
Amphenol Sine Systems Corp T 3438 951	Black	Contacts Not Included	1 mm	Thermoplastic	100 °C	-40 °C	UL94 V-0	Backshell Cable Clamp Coupling Nut Strain Relief	Unshielded	Plug Housing	IP40	M16-7	Bayonet Lock	7	Circular	Keyed	For Female Sockets	Crimp	Free Hanging (In-Line)
Amphenol Sine Systems Corp T 3438 518				Thermoplastic	100 °C	-40 °C	UL94 V-0	Backshell Cable Clamp Strain Relief	Unshielded	Female Sockets Plug	IP40	M16-7	Bayonet Lock	7		Keyed			Free Hanging (In-Line)	7 A	Nickel	4 mm 6 mm	0.157 in 0.236 in	Gold	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Black	250 VDC	Zinc Die Cast	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut, Strain Relief
