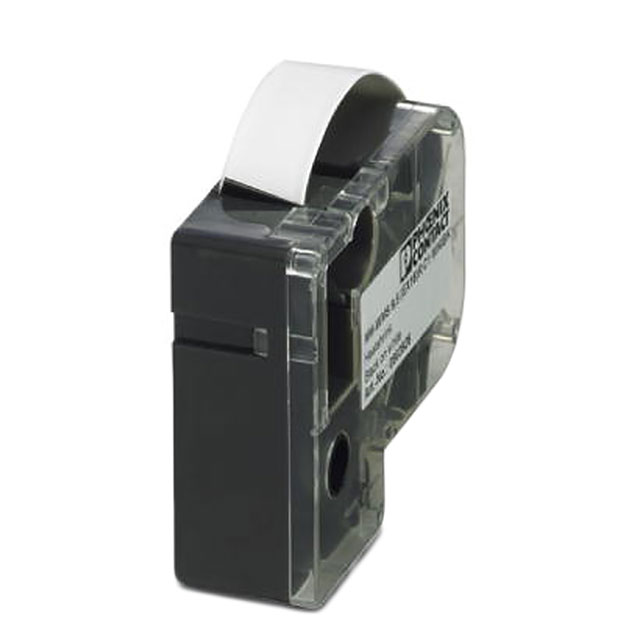

0803930

Active

Phoenix Contact

LABEL HEAT SHRINKABLE CONTIN WHT

Search across all available documentation for this part.

Active

Phoenix Contact

LABEL HEAT SHRINKABLE CONTIN WHT

Technical Specifications

Parameters and characteristics for this part

Specification	0803930

Color	White
For Use With/Related Products	Thermal Transfer Printer
Label Size [Max]	9.5 mm, 0.37 "
Label Size [Min]	4.8 mm, 0.19 "
Label Size [x]	16 mm, 0.63 "
Label Size [y]	70.87 ", 1.8 m
Label Type	Continuous, Heat Shrinkable
Material	Halogen Free, Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C

Part	Label Type	Color	Label Size [x]	Label Size [y]	Label Size [Max]	Label Size [Min]	For Use With/Related Products	Material	Operating Temperature [Max]	Operating Temperature [Min]	Label Size [Min]	Label Size [x]	Label Size [y]	Label Size [Max]	Label Size [Max]	Label Size [Max] [diameter]	Label Size [Min] [diameter]
Phoenix Contact 0803927	Continuous Heat Shrinkable	White	0.2 " 5 mm	1.8 m 70.87 "	0.13 " 3.2 mm	0.06 " 1.6 mm	Thermal Transfer Printer	Halogen Free Polyolefin (PO)	135 °C	-55 °C
Phoenix Contact 1116186	Heat Shrinkable				4.8 mm	2.4 mm		Polyolefin (PO)	125 °C	-55 °C	0.09 "	0.36 " 9.1 mm	0.04 " 1 mm	0.19 "
Phoenix Contact 1116189	Heat Shrinkable		16.5 mm	1 mm	9.5 mm	4.8 mm		Polyolefin (PO)	125 °C	-55 °C	0.19 "	0.65 in	0.04 "	0.37 "
Phoenix Contact 0803930	Continuous Heat Shrinkable	White	0.63 " 16 mm	1.8 m 70.87 "	0.37 " 9.5 mm	0.19 " 4.8 mm	Thermal Transfer Printer	Halogen Free Polyolefin (PO)	135 °C	-55 °C
Phoenix Contact 0803928	Continuous Heat Shrinkable	White	0.35 in 9 mm	1.8 m 70.87 "		0.09 in 2.4 mm	Thermal Transfer Printer	Halogen Free Polyolefin (PO)	135 °C	-55 °C					0.19 in 4.8 mm
Phoenix Contact 1116176	Heat Shrinkable		6.7 mm	1 mm	3.2 mm	1.6 mm		Polyolefin (PO)	125 °C	-55 °C	0.06 in	0.26 in	0.04 "	0.13 "
Phoenix Contact 0803929	Continuous Heat Shrinkable	White	0.39 in	70.87 "			Thermal Transfer Printer	Halogen Free Polyolefin (PO)	135 °C	-55 °C						0.25 in	0.13 in
Phoenix Contact 1116187	Heat Shrinkable		11.5 mm	1 mm	6.4 mm	3.2 mm		Polyolefin (PO)	125 °C	-55 °C	0.13 in	0.45 in	0.04 "	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

White Heat Shrinkable, Continuous Label 0.63" W x 70.87" L (16.0mm x 1.8m); Cable O.D. 0.19" ~ 0.37" (4.8mm ~ 9.5mm)
