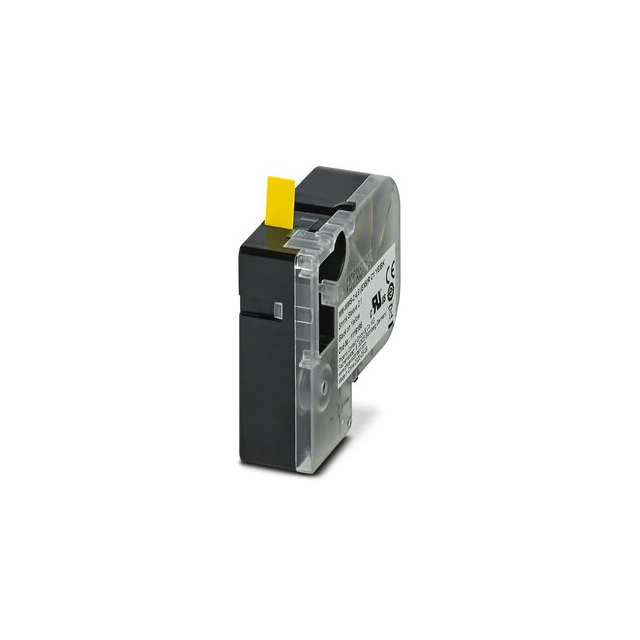

1116186

Active

Phoenix Contact

SHRINK SLEEVE, ROLL, YELLOW/BLAC

Search across all available documentation for this part.

Active

Phoenix Contact

SHRINK SLEEVE, ROLL, YELLOW/BLAC

Technical Specifications

Parameters and characteristics for this part

Part	Label Type	Color	Label Size [x]	Label Size [y]	Label Size [Max]	Label Size [Min]	For Use With/Related Products	Material	Operating Temperature [Max]	Operating Temperature [Min]	Label Size [Min]	Label Size [x]	Label Size [y]	Label Size [Max]	Label Size [Max]	Label Size [Max] [diameter]	Label Size [Min] [diameter]
Phoenix Contact 0803927	Continuous Heat Shrinkable	White	0.2 " 5 mm	1.8 m 70.87 "	0.13 " 3.2 mm	0.06 " 1.6 mm	Thermal Transfer Printer	Halogen Free Polyolefin (PO)	135 °C	-55 °C
Phoenix Contact 1116186	Heat Shrinkable				4.8 mm	2.4 mm		Polyolefin (PO)	125 °C	-55 °C	0.09 "	0.36 " 9.1 mm	0.04 " 1 mm	0.19 "
Phoenix Contact 1116189	Heat Shrinkable		16.5 mm	1 mm	9.5 mm	4.8 mm		Polyolefin (PO)	125 °C	-55 °C	0.19 "	0.65 in	0.04 "	0.37 "
Phoenix Contact 0803930	Continuous Heat Shrinkable	White	0.63 " 16 mm	1.8 m 70.87 "	0.37 " 9.5 mm	0.19 " 4.8 mm	Thermal Transfer Printer	Halogen Free Polyolefin (PO)	135 °C	-55 °C
Phoenix Contact 0803928	Continuous Heat Shrinkable	White	0.35 in 9 mm	1.8 m 70.87 "		0.09 in 2.4 mm	Thermal Transfer Printer	Halogen Free Polyolefin (PO)	135 °C	-55 °C					0.19 in 4.8 mm
Phoenix Contact 1116176	Heat Shrinkable		6.7 mm	1 mm	3.2 mm	1.6 mm		Polyolefin (PO)	125 °C	-55 °C	0.06 in	0.26 in	0.04 "	0.13 "
Phoenix Contact 0803929	Continuous Heat Shrinkable	White	0.39 in	70.87 "			Thermal Transfer Printer	Halogen Free Polyolefin (PO)	135 °C	-55 °C						0.25 in	0.13 in
Phoenix Contact 1116187	Heat Shrinkable		11.5 mm	1 mm	6.4 mm	3.2 mm		Polyolefin (PO)	125 °C	-55 °C	0.13 in	0.45 in	0.04 "	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black, Yellow Heat Shrinkable Label 0.36" x 0.04" (9.1mm x 1.0mm); Cable O.D. 0.09" ~ 0.19" (2.4mm ~ 4.8mm)
