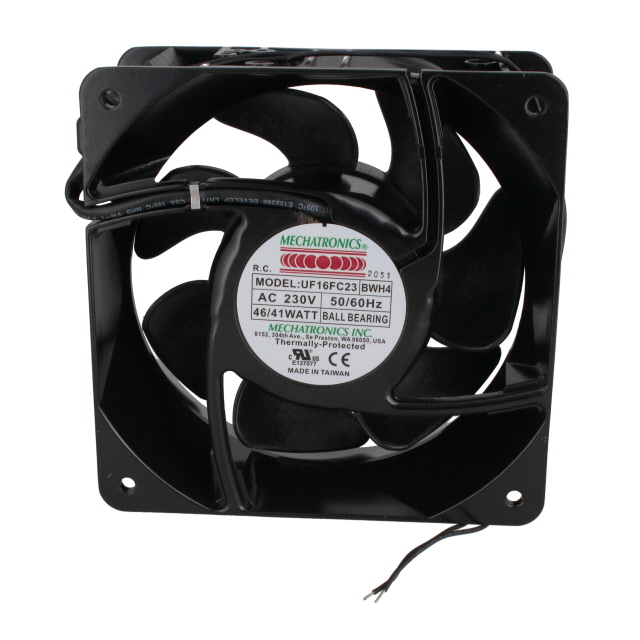

UF16FC23-BWHR4
ActiveMechatronics Bearing Group
AC FAN AXIAL 160X160X62MM, 230VA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UF16FC23-BWHR4
ActiveMechatronics Bearing Group
AC FAN AXIAL 160X160X62MM, 230VA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UF16FC23-BWHR4 |
|---|---|
| Air Flow | 265 CFM |
| Air Flow | 7.42 m³/min |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.17 A |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP), Permanent Split Capacitor Motor |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Noise | 56 dB |
| Power (Watts) | 41 W |
| RPM | 3400 RPM |
| Size / Dimension [x] | 160 mm |
| Size / Dimension [z] | 160 mm |
| Static Pressure | 179.3 Pa |
| Static Pressure | 0.72 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 230 VAC |
| Width [x] | 62 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 86.64 | |
| 10 | $ 78.39 | |||
| 25 | $ 73.23 | |||
| 50 | $ 72.20 | |||
| 100 | $ 66.53 | |||
Description
General part information
UF16F Series
Fan Tubeaxial 230VAC Square - 160mm L x 160mm H Ball 265.0 CFM (7.42mł/min) 2 Wire Leads
