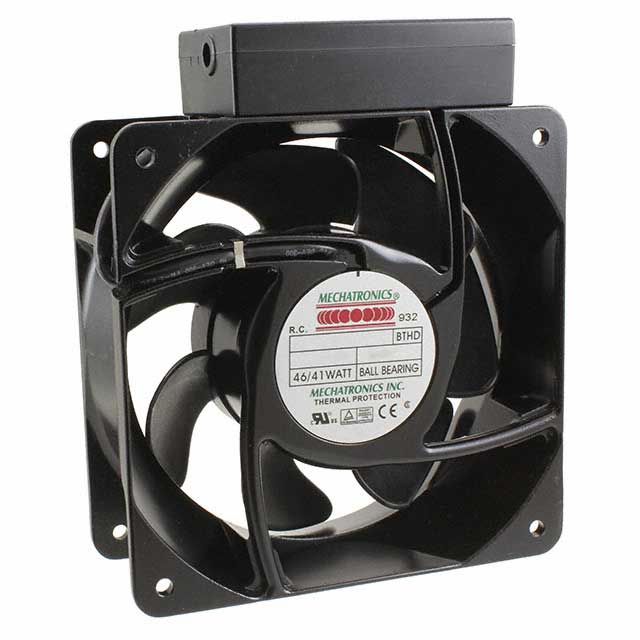

UF16FC12-BTHR
ActiveMechatronics Bearing Group
FAN AXIAL 160X62MM 115VAC
Deep-Dive with AI
Search across all available documentation for this part.
UF16FC12-BTHR
ActiveMechatronics Bearing Group
FAN AXIAL 160X62MM 115VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UF16FC12-BTHR |
|---|---|
| Air Flow | 7.42 m³/min |
| Air Flow | 265 CFM |
| Approval Agency | CE, cUL, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.34 A |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP), Permanent Split Capacitor Motor |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Noise | 56 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 41 W |
| RPM | 3400 RPM |
| Size / Dimension [x] | 160 mm |
| Size / Dimension [z] | 160 mm |
| Static Pressure | 179.3 Pa |
| Static Pressure | 0.72 in H2O |
| Termination | 2 Terminals |
| Voltage - Rated | 115 VAC |
| Weight | 2.8 lbs |
| Weight | 1.3 kg |
| Width [x] | 62 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 87.18 | |
| 15 | $ 78.88 | |||
| 30 | $ 73.69 | |||
| 60 | $ 72.65 | |||
| 105 | $ 66.94 | |||
Description
General part information
UF16F Series
Fan Tubeaxial 115VAC Square - 160mm L x 160mm H Ball 265.0 CFM (7.42m³/min) 2 Terminals
