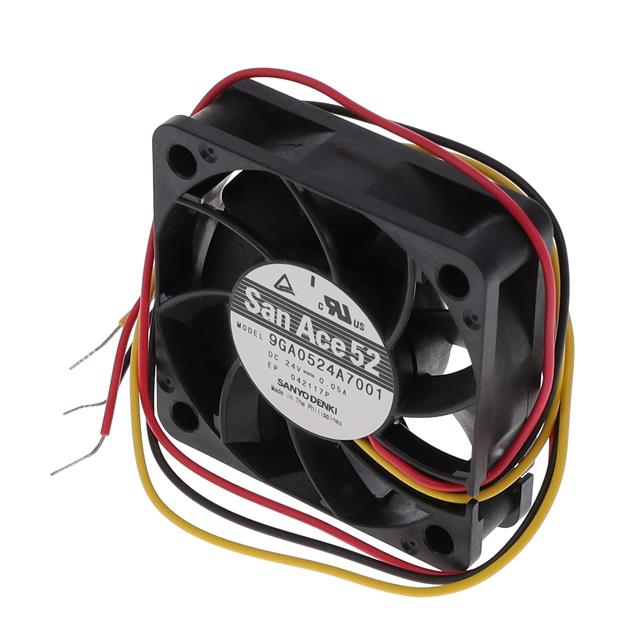

9GA0524A7001

Active

Sanyo Denki America Inc.

FAN AXIAL 52X15MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System DC Fan Datasheet +1

9GA0524A7001

Active

Sanyo Denki America Inc.

FAN AXIAL 52X15MM 24VDC WIRE

Deep-Dive with AI

DocumentsNumbering System DC Fan Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9GA0524A7001

Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Material - Blade	Plastic
Material - Frame	Plastic
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	1.2 W
Size / Dimension [x]	52 mm
Size / Dimension [z]	52 mm
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Width [x]	15 mm

9GA0524 Series

Part	Termination	Current Rating (Amps)	Approval Agency	Bearing Type	Power (Watts)	Material - Blade	Weight	Weight	Material - Frame	Size / Dimension [x]	Size / Dimension [z]	Lifetime @ Temp.	Static Pressure	Static Pressure	Noise	Voltage - Rated	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Width [x]	RPM	Air Flow	Air Flow	Features
Sanyo Denki America Inc. 9GA0524H7002	2 Wire Leads	30 mA	CSA TUV UL	Ball	720 mW	Plastic	0.089 lb	40.37 g	Plastic	52 mm	52 mm	40000 Hrs	0.11 in H2O	27.4 Pa	22 dB(A)	24 VDC	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	15 mm	4300 RPM	0.272 m³/min	9.7 CFM
Sanyo Denki America Inc. 9GA0524M7001	3 Wire Leads	20 mA	CSA TUV UL	Ball	0.48 W	Plastic	0.089 lb	40.37 g	Plastic	52 mm	52 mm	40000 Hrs	0.068 in H2O	17 Pa	16 dB	24 VDC	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	15 mm	3400 RPM	0.213 mł/min	7.6 CFM	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0524G7001	3 Wire Leads	70 mA	CSA TUV UL	Ball	1.68 W	Plastic	0.089 lb	40.37 g	Plastic	52 mm	52 mm	40000 Hrs	0.367 in H2O	91.5 Pa	38 dB(A)	24 VDC	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	15 mm	7800 RPM			Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0524A7001	4 Wire Leads		CSA TUV UL	Ball	1.2 W	Plastic			Plastic	52 mm	52 mm					24 VDC	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	15 mm				PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0524P7A001	4 Wire Leads	50 mA	CSA TUV UL	Ball	1.2 W	Plastic	0.088 lb	39.92 g	Plastic	52 mm	52 mm	40000 Hrs	0.237 in H2O	59 Pa	32 dB	24 VDC	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	15 mm	6300 RPM	0.395 mł/min	14.1 CFM	PWM Control Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.96
		10	$ 15.12
		25	$ 14.44
		50	$ 13.95
		140	$ 13.25
		280	$ 12.80
		560	$ 12.37
