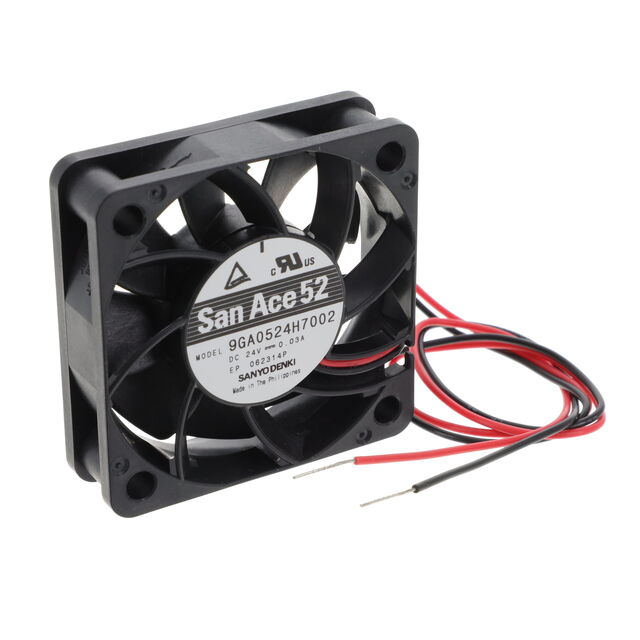

9GA0524H7002

Active

Sanyo Denki America Inc.

FAN AXIAL 52X15MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Numbering System DC Fan

9GA0524H7002

Active

Sanyo Denki America Inc.

FAN AXIAL 52X15MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Numbering System DC Fan

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9GA0524H7002

Air Flow	0.272 m³/min
Air Flow	9.7 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	30 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	22 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	720 mW
RPM	4300 RPM
Size / Dimension [x]	52 mm
Size / Dimension [z]	52 mm
Static Pressure	0.11 in H2O
Static Pressure	27.4 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	0.089 lb
Weight	40.37 g
Width [x]	15 mm

9GA0524 Series

Part	Termination	Current Rating (Amps)	Approval Agency	Bearing Type	Power (Watts)	Material - Blade	Weight	Weight	Material - Frame	Size / Dimension [x]	Size / Dimension [z]	Lifetime @ Temp.	Static Pressure	Static Pressure	Noise	Voltage - Rated	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Width [x]	RPM	Air Flow	Air Flow	Features
Sanyo Denki America Inc. 9GA0524H7002	2 Wire Leads	30 mA	CSA TUV UL	Ball	720 mW	Plastic	0.089 lb	40.37 g	Plastic	52 mm	52 mm	40000 Hrs	0.11 in H2O	27.4 Pa	22 dB(A)	24 VDC	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	15 mm	4300 RPM	0.272 m³/min	9.7 CFM
Sanyo Denki America Inc. 9GA0524M7001	3 Wire Leads	20 mA	CSA TUV UL	Ball	0.48 W	Plastic	0.089 lb	40.37 g	Plastic	52 mm	52 mm	40000 Hrs	0.068 in H2O	17 Pa	16 dB	24 VDC	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	15 mm	3400 RPM	0.213 mł/min	7.6 CFM	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0524G7001	3 Wire Leads	70 mA	CSA TUV UL	Ball	1.68 W	Plastic	0.089 lb	40.37 g	Plastic	52 mm	52 mm	40000 Hrs	0.367 in H2O	91.5 Pa	38 dB(A)	24 VDC	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	15 mm	7800 RPM			Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0524A7001	4 Wire Leads		CSA TUV UL	Ball	1.2 W	Plastic			Plastic	52 mm	52 mm					24 VDC	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	15 mm				PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0524P7A001	4 Wire Leads	50 mA	CSA TUV UL	Ball	1.2 W	Plastic	0.088 lb	39.92 g	Plastic	52 mm	52 mm	40000 Hrs	0.237 in H2O	59 Pa	32 dB	24 VDC	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	15 mm	6300 RPM	0.395 mł/min	14.1 CFM	PWM Control Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 18.45
		10	$ 16.85
		25	$ 16.21
		50	$ 15.14
		140	$ 13.97
		280	$ 13.76
		560	$ 13.65

Description

General part information

9GA0524 Series

Fan Tubeaxial 24VDC Square - 52mm L x 52mm H Ball 9.7 CFM (0.272m³/min) 2 Wire Leads
