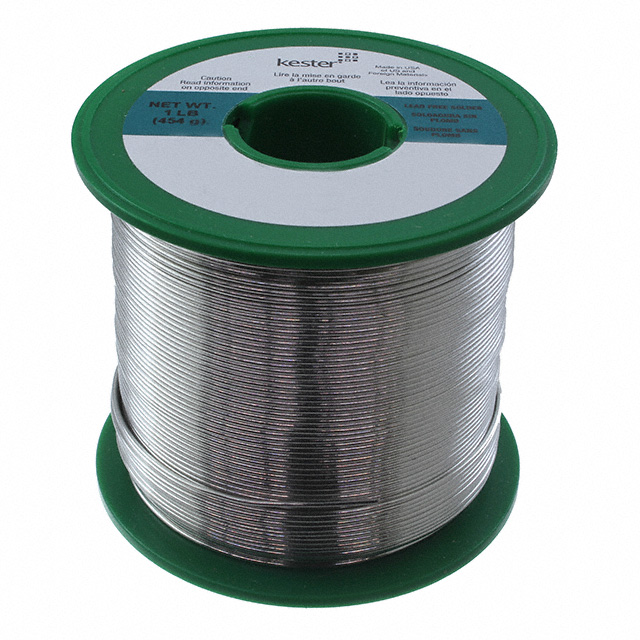

24-9574-1402
ActiveKester Solder
SOLDER 66 .031 20AWG 1LB
Deep-Dive with AI
Search across all available documentation for this part.
24-9574-1402
ActiveKester Solder
SOLDER 66 .031 20AWG 1LB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 24-9574-1402 |
|---|---|
| Composition | Sn99.3Cu0.7 (99.3/0.7) |
| Flux Type | Rosin Activated (RA) |
| Form | Spool, 1 lb (454 g) |
| Melting Point [custom] | 441 °F |
| Melting Point [custom] | 227 °C |
| Storage/Refrigeration Temperature [Max] | 40 °C |
| Storage/Refrigeration Temperature [Min] | 10 °C |
| Type | Wire Solder |
| Wire Gauge | 20 AWG, 22 SWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 92.28 | |
| 5 | $ 79.44 | |||
| 10 | $ 74.45 | |||
| 25 | $ 68.33 | |||
| 50 | $ 64.01 | |||
| 100 | $ 59.95 | |||
Description
General part information
24-9574 Series
Lead Free Rosin Activated (RA) Wire Solder Sn99.3Cu0.7 (99.3/0.7) 20 AWG, 22 SWG Spool, 1 lb (454 g)
Documents
Technical documentation and resources
