24-9574-1411

Active

Kester Solder

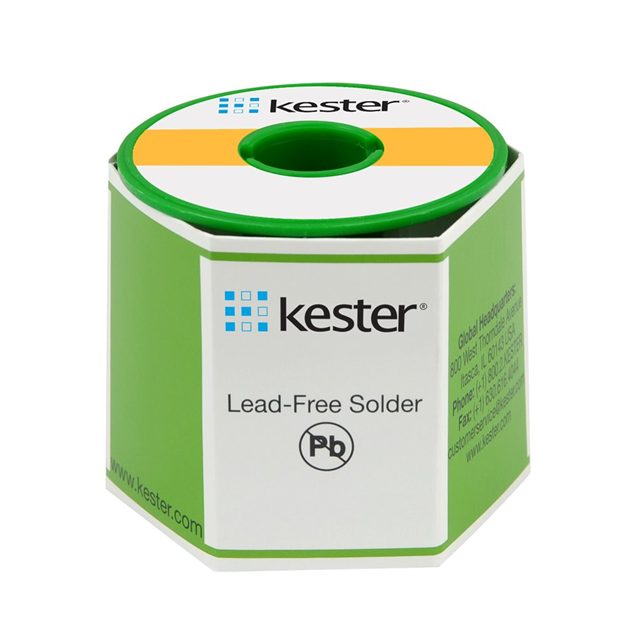

SOLDER FLUX-CORED/48 .093 1LB SP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAlloy Temperature Chart Datasheet

24-9574-1411

Active

Kester Solder

SOLDER FLUX-CORED/48 .093 1LB SP

Deep-Dive with AI

DocumentsAlloy Temperature Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	24-9574-1411

Composition	Sn99.3Cu0.7 (99.3/0.7)
Diameter [diameter]	0.093 "
Diameter [diameter]	2.36 mm
Flux Type	Rosin Activated (RA)
Form	Spool, 1 lb (454 g)
Melting Point [custom]	441 °F
Melting Point [custom]	227 °C
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Wire Solder
Wire Gauge	13 SWG, 11 AWG

24-9574 Series

Part	Flux Type	Melting Point [custom]	Melting Point [custom]	Composition	Form	Type	Wire Gauge	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Wire Gauge	Diameter [diameter]	Diameter [diameter]	Diameter [diameter]
Kester Solder 24-9574-7619	No-Clean	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Spool 1 lb (454 g)	Wire Solder	22 AWG 23 SWG	10 °C	40 °C
Kester Solder 24-9574-6422	Water Soluble	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Spool 1 lb (454 g)	Wire Solder		10 °C	40 °C	27 AWG 28 SWG	0.015 in	0.38 mm
Kester Solder 24-9574-6401	Water Soluble	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Spool 1 lb (454 g)	Wire Solder		10 °C	40 °C	24 AWG 25 mmý	0.02 in	0.51 mm
Kester Solder 24-9574-1411	Rosin Activated (RA)	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Spool 1 lb (454 g)	Wire Solder		10 °C	40 °C	11 AWG 13 SWG	0.093 "	2.36 mm
Kester Solder 24-9574-8213	Rosin Activated (RA)	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Spool 1 lb (454 g)	Wire Solder	20 AWG 22 SWG	10 °C	40 °C
Kester Solder 24-9574-6417	Water Soluble	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Spool 1 lb (454 g)	Wire Solder	22 AWG 23 SWG	10 °C	40 °C
Kester Solder 24-9574-1401	Rosin Activated (RA)	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Spool 1 lb (454 g)	Wire Solder		10 °C	40 °C	24 AWG 25 mmý	0.02 in	0.51 mm
Kester Solder 24-9574-6403	Water Soluble	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Spool 1 lb (454 g)	Wire Solder	20 AWG 22 SWG	10 °C	40 °C
Kester Solder 24-9574-1402	Rosin Activated (RA)	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Spool 1 lb (454 g)	Wire Solder	20 AWG 22 SWG	10 °C	40 °C
Kester Solder 24-9574-7631	No-Clean	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Spool 1 lb (454 g)	Wire Solder		10 °C	40 °C	30 AWG 33 SWG		0.01 in	0.25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

24-9574 Series

Lead Free Rosin Activated (RA) Wire Solder Sn99.3Cu0.7 (99.3/0.7) 11 AWG, 13 SWG Spool, 1 lb (454 g)

Documents

Technical documentation and resources
